Laser Welding Machine

HANDHELD FIBER LASER WELDING MACHINE 2000W WITH AUTO WIRE FEEDER CNC Fiber Laser welding can be used in welding stainless steel, aluminum, copper, gold, silver, chromium, nickel, titanium and other metals or alloys, can also be used for a variety of welding between different materials, such as: copper – brass, titanium –gold, Titanium – molybdenum, nickel – copper and so on. Welding range: 0.5~8mm carbon steel,0.5~4mm stainless steel, aluminium alloy 0.5~6mm, brass 0.5~4mm.



Stainless Steels  |   Carbon Steels  |   Gold & Silver    |    Aluminum

Tool Steels      |     Nickel Alloys    |   Brass & Copper   |   Titanium




Handheld Laser welding 11 mm stainless steel

5 mm Aluminum handheld laser welding

Laser welding and testing of brass

2 kw handheld laser welding 6 mm Carbon Steels

Automatic laser welding machine to weld round products with automatic wire feeder 2

1Kw automatic laser welding machine to weld ice sword

1KW automatic weld different kinds of raw materials

1KW automatic weld different kinds of raw materials

1500W robot laser welding machine function test to weld stainless steel

3D fiber laser cutting machine robot cutting machine

3000W fiber laser welding machine with 6 axis robot to weld 3mm aluminium

fiber laser welding machine with 6 axis robot welding system

How our customers use jewelry welding machine to repair damaged rings

Jewelry laser welding machine

100W compact jewelry laser welder with germany technology

1.5mm silver wire welding test by 60W jewelry laser welding machine OPTIC LASER

Mold laser welding machine repair mold with wire filler

200W mold laser welding machine to weld the chamfer and bearing shaft together

200W mold laser welder used to weld blade

Mold laser welding machine Mold laser welder manual video

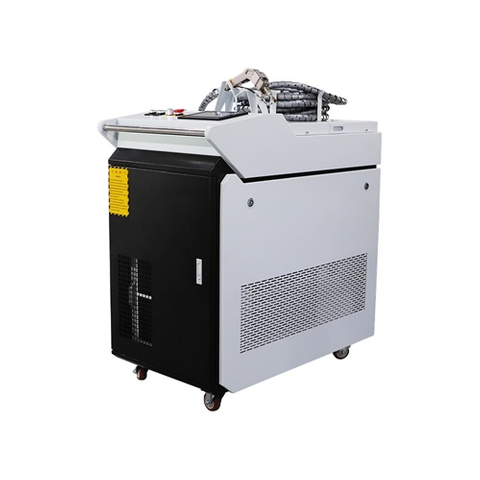

Handheld laser welding machine

More >>

The laser hand-held laser welding machine adopts the latest generation of fiber lasers and is equipped with a self-developed wobble welding head to fill the gap of hand-held welding in the laser equipment industry. It has the advantages of simple operation, beautiful weld seam, fast welding speed and no consumables. Welding of metal materials such as stainless steel plates, iron plates, and galvanized plates can perfectly replace traditional argon arc welding and electric welding. The hand-held laser welding machine can be widely used in complex and irregular welding processes in cabinet kitchens, stair elevators, shelves, ovens, stainless steel door and window guardrails, distribution boxes, stainless steel homes and other industries.



手持JPG格式


Handheld Laser Welding Machine Specifications
Laser power                 1000 W/1500 W/2000 W
Laser source                  Raycus / IPG
Welding head                  Wobble welding head / Normal welding head
Laser frequency                  50Hz-5000Hz
Adjustable power rate                 5 to 100%
Beam quality                  1.1
Electric power                  220V50HZ / 380V 50Hz
Wavelength                 1070±5nm
Consumable part                 Protection lens,focusing lens nozzle
Fiber leangth                 15m Standard
Cooling method

                    Water chiller

Dimension                  930x600x800mm
Gross weight                 200kg



Types of metals that can be welded by handheld laser welding machine:

Stainless Steels    Carbon Steels    Gold & Silver    Aluminum
Tool Steels    Nickel Alloys    Brass & Copper    Titanium

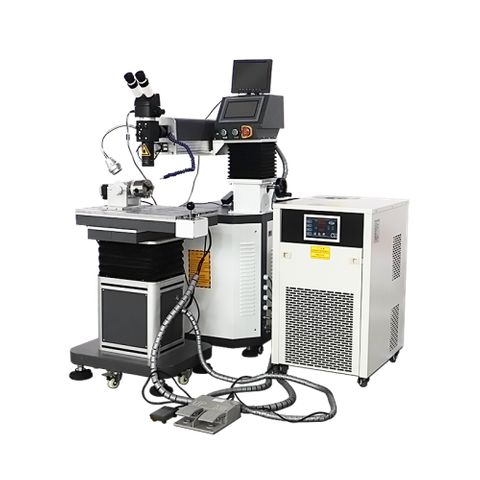

Mold laser weldingmachine

More >>

Mould Repair Welding Machine can also be called CNC laser welding machine



OPTIC LASER welder Standard Laser Welding Machine is an important and basic aspect of laser welding technology. When laser heats the surface of work-piece, the surface heat diffuses to the interior through thermal conduction and melts the workpieces by controlling the width, energy, peak power and repeating frequency of laser pulse to form specific molten pool. Because of this unique feature, it is widely used in the processing of spot welding, perforating, repairing, re-tipping and resizing. etc.



Mold Laser Welding Machine Specifications
Laser Power 200W 400W 500W
Laser Type YAG
Wavelength 1064nm
Max Output Energy 200W 400W 500W
Max Single Pulse Energy 80J 100J 120J
Pulse Width 0.1~20ms
Max Output Energy 0~35HZ 0~100HZ 0~100HZ
Welding Depth 0.1~2mm 0.1~2.5mm 0.1~3mm
Observation System Microscope or CCD for option
Spot Size Adjustment Range 0.1~3mm
Total Power Consumption 6kw 12kw 14kw
Rated Power AC220±5% ;50HZ AC380±5% ;50HZ
Cooling Method Water Cooling
Workbench Bearing ≤200kg
Dimension of Worktable Stroke of 3 axis: X axis 250mm, Y axis 150mm, Z axis 200mm (electric or manual for option)
Net Weight 300kg
Machine Dimension Main Machine:560*750*1170mm
(L*W*H) Worktable:450*450*700mm

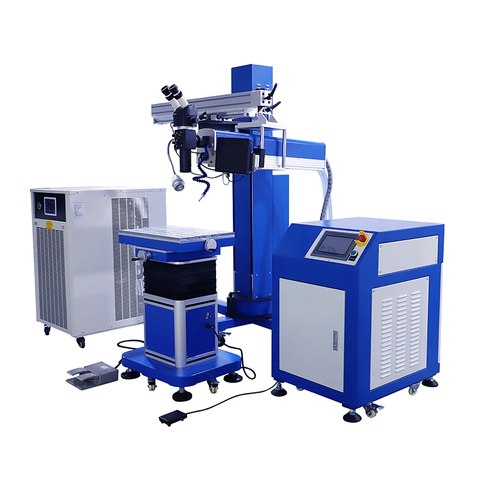

Cantilever Mould Repair Laser Machine



Types of metals that can be welded by mold repair laser welding machine:

Stainless Steels    Carbon Steels    Gold & Silver    Aluminum
Tool Steels    Nickel Alloys    Brass & Copper    Titanium

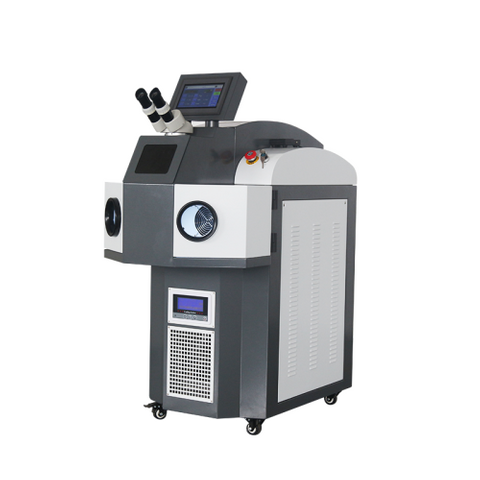

Jewelry laser welding machine

More >>





This is 200 watts jewelry laser welder with 100 joules.



The heat affected zone is small, the welding spot size can be adjusted, the welding spot is flat and beautiful, and there is no need for excessive post-weld treatment.



Fast welding speed, high quality, non-polluting solder joints, precise positioning, no injuring of surrounding jewels during welding



Compact, elegant, user-friendly design, ergonomic, long-term work is not fatigue



The display uses a 7-inch LED screen, with Chinese, English, Russian, Spanish and other languages, with a blowing protection device



CCD monitoring system can be installed on the basis of 10X microscope



With 24 hours of continuous work ability, low power consumption

Can provide customized personalized services





This is our jewelry laser welder for all models



New jewelry laser welding machine mini spot welding machine


jewelry laser welding machine Specifications
Laser power

80W / 200W

Laser Type

YAG

Wavelength

1064nm

Max Output Energy

80W / 200W

Max Single Pulse Energy

60J / 100J

Pulse Width

0.1~10ms

Frequency

0~20HZ / 35HZ /

Welding Depth

0.1~3mm

Spot Size Adjustment Range

0.1~3mm

Total Power Consumption

2.5kw /3kw / 6kw

Rated Power

AC220±5% ;50HZ

Cooling Method

Water cooling

Net Weight

26kg / 90kg / 200kg





Because the Jewelry Laser Welder comes with a built-in 10X stereo microscope, it offers clear, crisp viewing of what’s going on in the chamber. You can easily monitor your work and track your progress.

Jewelry welding machine monitoring system

This model is really small and compact – designed specifically for smaller studios that have smaller benches. On the other hand, it comes with a decent opening, meaning you’ll still be able to work on relatively bigger pieces.

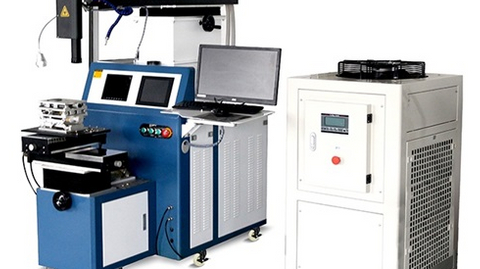

Automatic laser welding machine

More >>
OPTIC LASER Automatic Laser Welding Machine is specially designed to be controlled by the computer completely and welding speed is very fast and high precision .It can automatic adjust the Focusing size to meet differents level surface or laser welding automatically

1000W 1500W 2000W Fiber Laser Automatic Welding Machine photograph 3Automatic Laser Welding Machine1000W 1500W 2000W Fiber Laser Automatic Welding Machine photograph 4

Automatic Laser Welding Machine Specifications

Model

OPT-RW1000/1500/2000

Laser Power

1000W (optional 1500W/2000W)

Laser source brand

Raycus/IPG/Nligh

Laser source

1000W continuous fiber laser (optional 1500W/2000W)

Laser wavelength

1070nm±5nm m

Laser mode

Multiple modes

Working method

continuous

Average output power

1000W

Average power consumption

3000W

Power adjustment range

5-95%

Power instability

≤2%

Transmission fiber core diameter

50um

Minimum spot

0.2mm

Fiber length

10m



Types of metals that can be welded by mold repair laser welding machine:

Stainless Steels    Carbon Steels    Gold & Silver    Aluminum
Tool Steels    Nickel Alloys    Brass & Copper    Titanium

Robotic Fiber laser welding machine

More >>
A robot laser welding system consists of a servo-controlled, multi-axis mechanical arm, with a laser welding head mounted to the face plate of the robot arm.

The welding head has focusing optics for the laser light and an integral height control mechanism. An assist gas delivery package distributes a gas, such as oxygen or nitrogen, to the welding head. Most systems use a laser generator that delivers the laser light to the robot welding head through a fiber-optic cable.

robotic laser welding machine (2)robotic laser welding machine (5)robotic laser welding machine

The latest in welding technology, laser welding and is an ideal solution for high speed, precision welding. Robotic laser welding expands upon this ground breaking technology even further, offering precision and repeatability to even the most complex, tedious tasks.



Robotic laser welding applications are used throughout an assortment of industries that have high volume production rates, including:



Be widely used in precise components welding like:power battery、battery case、hardware fitting、kitchen ware and bathroom accessory、military manufacturing、instruments and apparatus、motor、IT mobile phone components、silicon sheet、sheet metal part、auto parts、laser cladding、medical instruments etc



Types of metals that can be welded by Robot CNC laser welding machine:

Stainless Steels    Carbon Steels    Gold & Silver    Aluminum
Tool Steels    Nickel Alloys    Brass & Copper    Titanium



LASER WLEDING MACHINE

For more machine information, please contact our salesman
