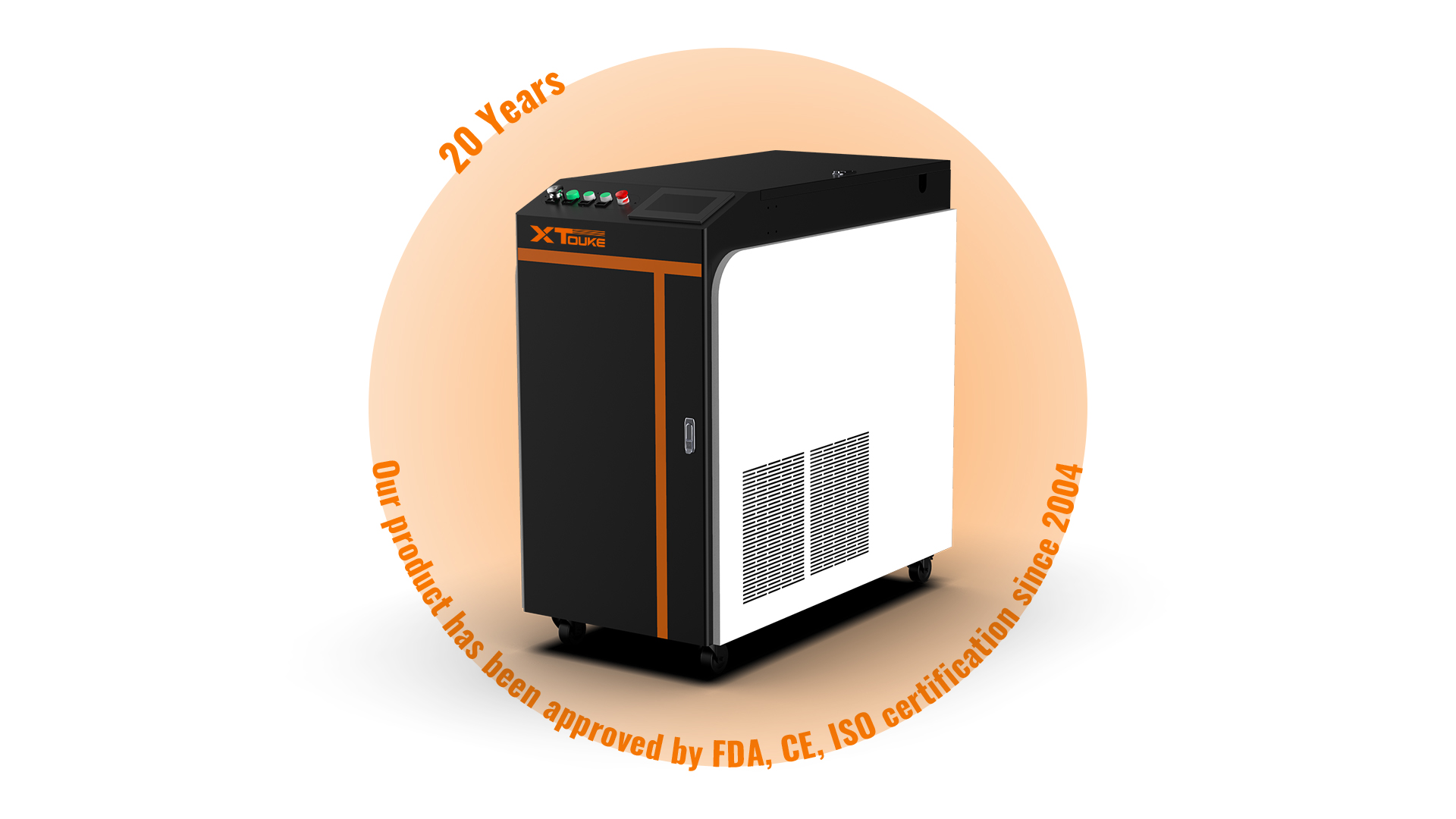

Handheld Fiber Transmission Laser Welding Machine

Applicable materials: stainless steel, iron, aluminum, aluminum alloy welding. Widely used on notebook computer enclosures, hardware components, kitchen and bathroom, military manufacturing, instrumentation, motors, IT mobile phone components, silicon steel, auto parts, laser cladding, medical equipment and other precision parts.

  • OPT-HW200/300/400/500/600
  • OPTIC
Quantity:

Parameters


Handheld Fiber Transmission Laser Welding Machine Specifications


Laser Power200W400W600W
Laser TypeYAG
Wavelength1064nm
Max Output Energy200W400W600W
Max Single Pulse Energy100J120J150J
Repeat Frequency1~35HZ1~100HZ
Single Pulse Width0.1~20ms

Splitting Method

Energy Splitting Type, Time Splitting Type, High Speed Time & Energy Splitting Type for option
Fiber Cable length5m/10m/15m/20m
Fiber Core Diameter0.4~0.6 for option
Total Power Consumption6kw12kw16kw
Rated PowerAC220±10% /50HZAC380±10% /50HZ
Cooling MethodWater Cooling
Net Weight350kg450kg
Machine Dimension(L*W*H)1320*660*1100




Range of Application

Applicable materials: stainless steel, iron, aluminum, aluminum alloy welding. Widely used on notebook computer enclosures, hardware components, kitchen and bathroom, military manufacturing, instrumentation, motors, IT mobile phone components, silicon steel, auto parts, laser cladding, medical equipment and other precision parts.


Characteristics


The Characteristics of Handheld Fiber Transmission Laser Welding Machine


  1. High production efficiency, fast welding speed, automatic mass production, tailored integrated flow

  2. Can weld any random track of points, straight lines, squares, etc. It can also be applied to various complex weld joint.

  3. Hand-held head equipped with imported optical fiber, flexible and convenient, can achieve outdoor welding

  4. Handheld welding torch operating mode, can weld any part of the work piece at any angle

  5. Can achieve dual optical paths switch, Energy Splitting Type, Time Splitting Type for option,  uniform energy distribution


Samples

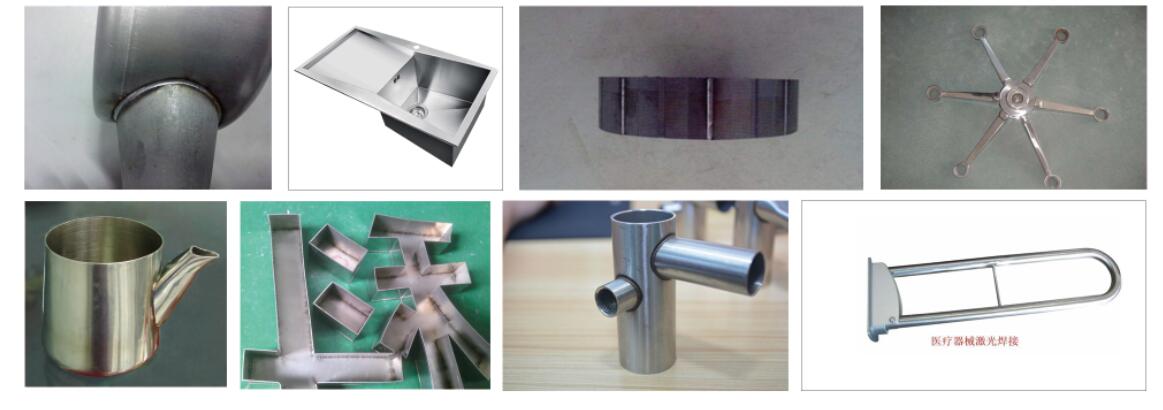

Samples of  Handheld Fiber Transmission Laser Welding Machine


Samples of Handheld Fiber Transmission Laser Welding Machine

PRODUCT INQUIRE

SEND MESSAGE

Guess the question you want to know

  • Q What is your delivery service ?

    A We provide worldwide delivery service through express,air shipping, sea shipping and land shipping, you can choose the delivery is to your door or to your port, our very convenient door to door service will deliver the machine directly to your door or factory with customs cleared, taxes and duty paid, that provide best buying experience from overseas.
  • Q If i am first time use the laser machine, how i can have training service?

    A For laser marking and laser welding system such simple machine, we have full training video and 16 hours online support to provide training service, most of our customer will have basic skill and operation for laser system in a a week by our help; For laser cutting system such a complex machine, we will send our engineer to your side for a 7 days training, it is free.
  • Q How i can get support when i get troubles ?

    A
    We guarantee a period for our laser system, for detailed period please refer to machine gallery.
    In warranty, if any parts broken, we will send the replacement part to you by express for free, and you send the broken part back to us. For complex problems, we will send our engineer to your side for maintenance, it is free.
  • Q What is your after sales service for me ?

    A
    Whenever you meet the trouble please feel free to contact us, our sales engineer and technician team that over 20 professor will taking responsibility in a very short time, usually they are 16 hours online for every working day.
  • Q What is your quality?

    A We would like to introduce ourselves as a 14 years old laser machine manufacturer in China, We build our laser system with world famous components from China, Germany, America, and Japan, all laser system certified by CE/ FDA/ ISO9001:2015, for each set of our coming machine will cross 16 hours continuous working at maximum power for test before delivery.
