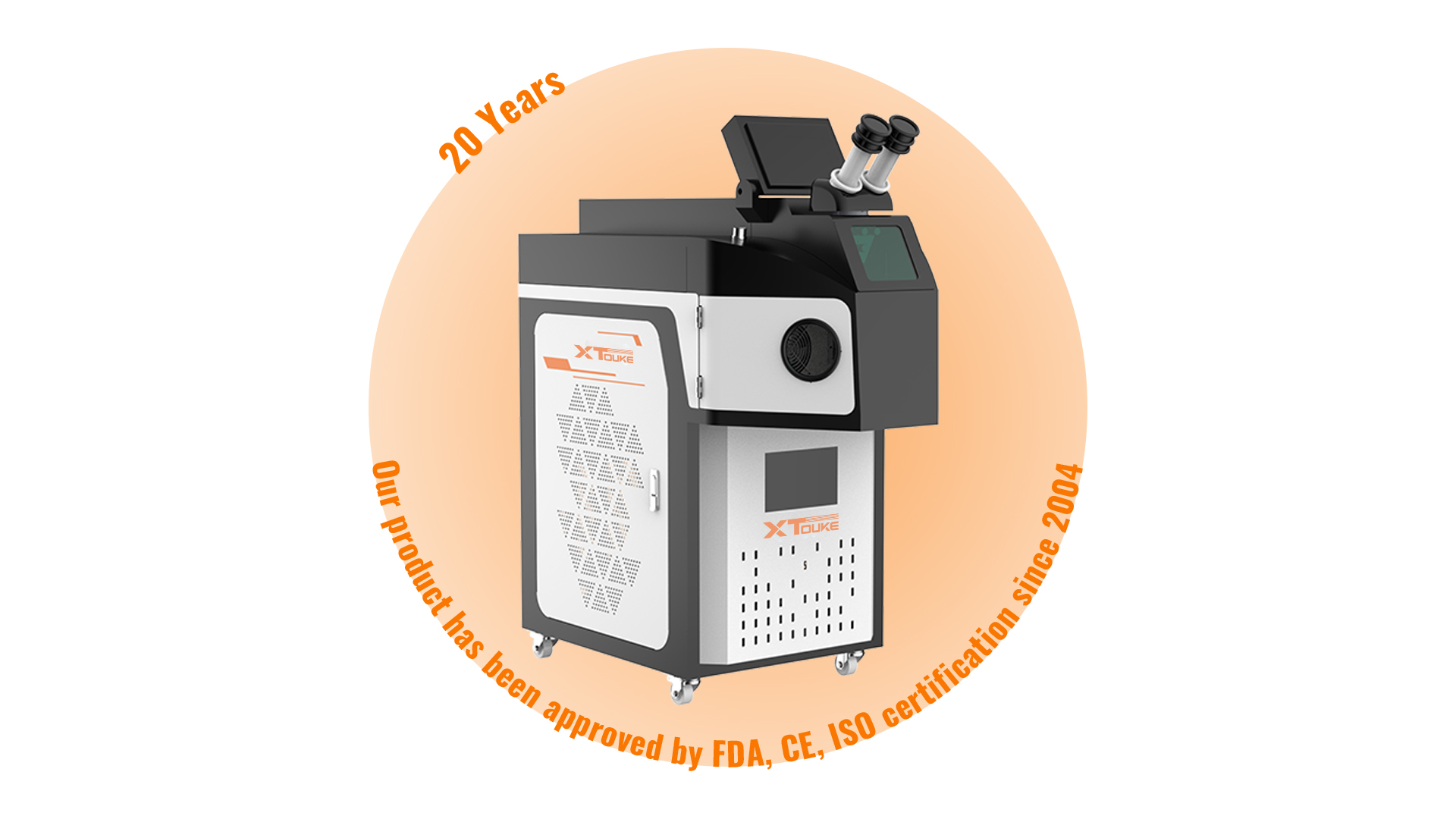

Jewelry Laser Welding Machine(All-in-one Type/ Detached Type)

  • OPT-JW200
Quantity:

Parameters

 Jewelry Laser Welding Machine(All-in-one Type/ Detached Type) parameters

Laser power

200W

Laser Type

YAG

Wavelength

1064nm

Max Output Energy

200W

Max Single Pulse Energy

100J

Pulse Width

0.1~20ms

Frequency

0~35HZ

Welding Depth

0.1~3mm

Spot Size Adjustment Range

0.1~3mm

Total Power Consumption

6kw

Rated Power

AC220±5% ;50HZ

Cooling Method

Built-in Air Cooling

Net Weight

200kg

Machine Dimension (L*W*H)

1050*580*1200mm



Range of Application

Applicable materials: Gold, silver, platinum, stainless steel, titanium, and other metals and their alloys. Widely used in gold and silver jewelry, rings, pendants, bracelets, necklaces, holes, spot welding brazing, repair seams and the welding of claw parts of the mosaic parts, etc., can also be applied to artificial teeth sand and small precision parts (such as: Inheritance Circuit lead, clock spring, kinescope , electron gun assembly, etc.)


Characteristics

1、The heat affected zone is small, the welding spot size can be adjusted, the welding spot is flat and beautiful, and there is no need for excessive post-weld treatment.

2Fast welding speed, high quality, non-polluting solder joints, precise positioning, no injuring of surrounding jewels during welding

3Compact, elegant, user-friendly design, ergonomic, long-term work is not fatigue

4The display uses a 7-inch LED screen, with Chinese, English, Russian, Spanish and other languages, with a blowing protection device

5CCD monitoring system can be installed on the basis of 10X microscope

6With 24 hours of continuous work ability, low power consumption

7Can provide customized personalized services


Samples

Sample of table top jewelry welding machine

PRODUCT INQUIRE

SEND MESSAGE

Guess the question you want to know

  • Q What is your delivery service ?

    A We provide worldwide delivery service through express,air shipping, sea shipping and land shipping, you can choose the delivery is to your door or to your port, our very convenient door to door service will deliver the machine directly to your door or factory with customs cleared, taxes and duty paid, that provide best buying experience from overseas.
  • Q If i am first time use the laser machine, how i can have training service?

    A For laser marking and laser welding system such simple machine, we have full training video and 16 hours online support to provide training service, most of our customer will have basic skill and operation for laser system in a a week by our help; For laser cutting system such a complex machine, we will send our engineer to your side for a 7 days training, it is free.
  • Q How i can get support when i get troubles ?

    A
    We guarantee a period for our laser system, for detailed period please refer to machine gallery.
    In warranty, if any parts broken, we will send the replacement part to you by express for free, and you send the broken part back to us. For complex problems, we will send our engineer to your side for maintenance, it is free.
  • Q What is your after sales service for me ?

    A
    Whenever you meet the trouble please feel free to contact us, our sales engineer and technician team that over 20 professor will taking responsibility in a very short time, usually they are 16 hours online for every working day.
  • Q What is your quality?

    A We would like to introduce ourselves as a 14 years old laser machine manufacturer in China, We build our laser system with world famous components from China, Germany, America, and Japan, all laser system certified by CE/ FDA/ ISO9001:2015, for each set of our coming machine will cross 16 hours continuous working at maximum power for test before delivery.
