How the welding thickness different between butt welding and vertical welding

Views:20     Author:Kelly Xu     Publish Time: 2019-12-01      Origin:China laser welding machine supplier Inquire

How the welding thickness different between butt welding and vertical welding


Brief introduction:

Recently the handheld laser welding machine is widely used in sheet metal industry, furniture industry and hardware industry,etc.

Applicable materials are: Stainless steel, mild steel, carbon steel, iron, aluminium, brass, galvanized sheet, round or cubic pipes, etc.

95% of the customers use this machine to do butt welding and 90° vertical welding. 5% of the customers used to weld round & cubic pipes.

Different laser power that used to weld different thickness, so far, we have 500W, 1000W and 1500W laser power available.

Handheld Fiber Laser Welding Machine


How the welding thickness different between butt welding and vertical welding?

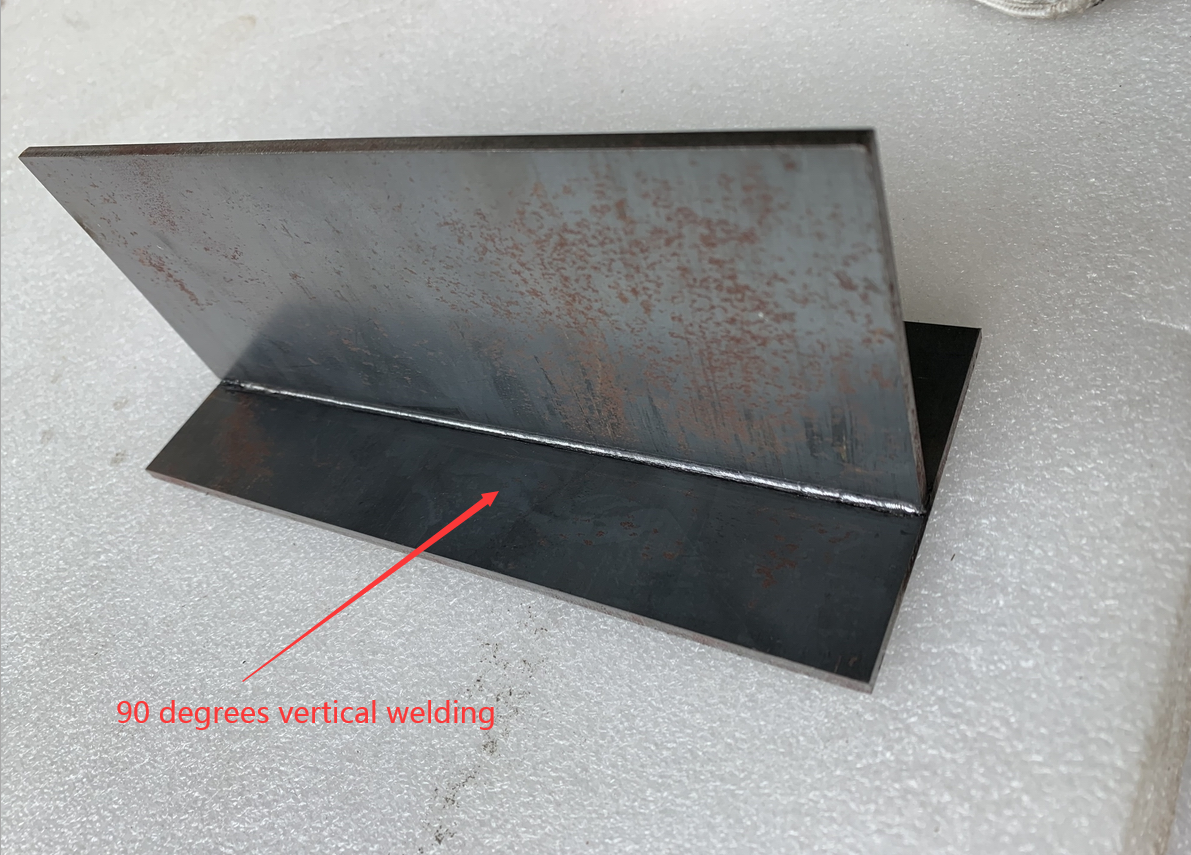

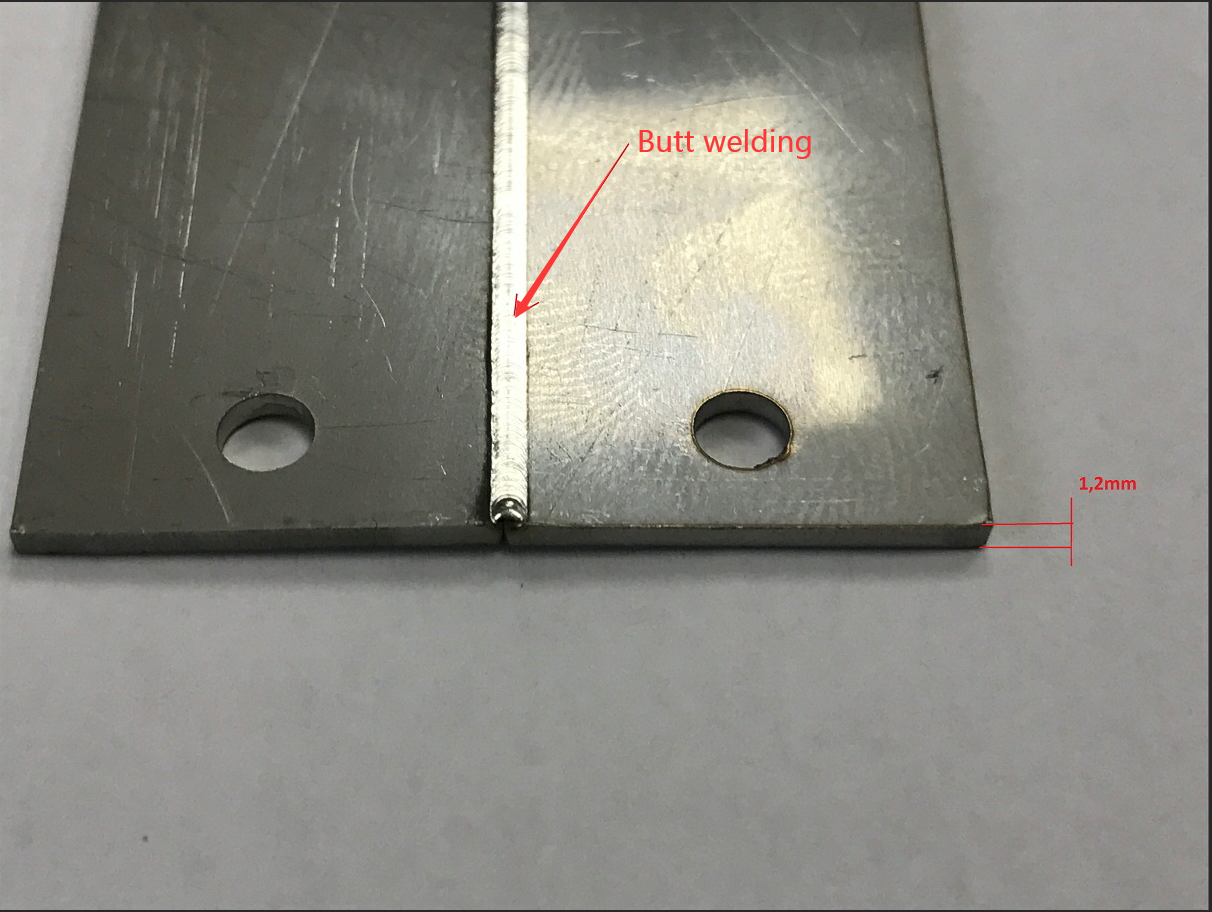

From the picture:

From the picture From the picture

From the welding parameters

Machine modelButt welding maximum thickness90° vetical welding maximum thickness

OPT-FW500

500W handheld laser welder

Stainless steel: 2mm
Galvanized sheet: 1mm
Iron: 2mm
Mild steel: 2mm
Aluminum: 0.5mm
Brass: 0.5mm
Stainless steel: 3mm
Galvanized sheet: 2mm
Iron: 3mm
Mild steel: 3mm
Aluminum: 2mm
Brass: 2mm

OPT-FW1000

1000W handheld laser welder

Stainless steel: 3mm
Galvanized sheet: 2mm
Iron: 3mm
Mild steel: 3mm
Aluminum: 1mm
Brass:1mm
Stainless steel: 4mm
Galvanized sheet: 3mm
Iron: 5mm
Mild steel: 5mm
Aluminum: 2mm
Brass: 2mm

OPT-FW1500

1500W handheld laser welder

Stainless steel: 4mm
Galvanized sheet: 3mm
Iron: 4mm
Mild steel: 4mm
Aluminum: 2mm
Brass: 2mm
Stainless steel: 6mm
Galvanized sheet: 5mm
Iron: 6mm
Mild steel: 6mm
Aluminum: 3mm
Brass: 2mm



For more detailed information, just ask me freely.
