Table of operating cost and cutting capacity of laser cutting machine

Views: 189 Author: Site Editor Publish Time: 10-05-2021 Origin: Site

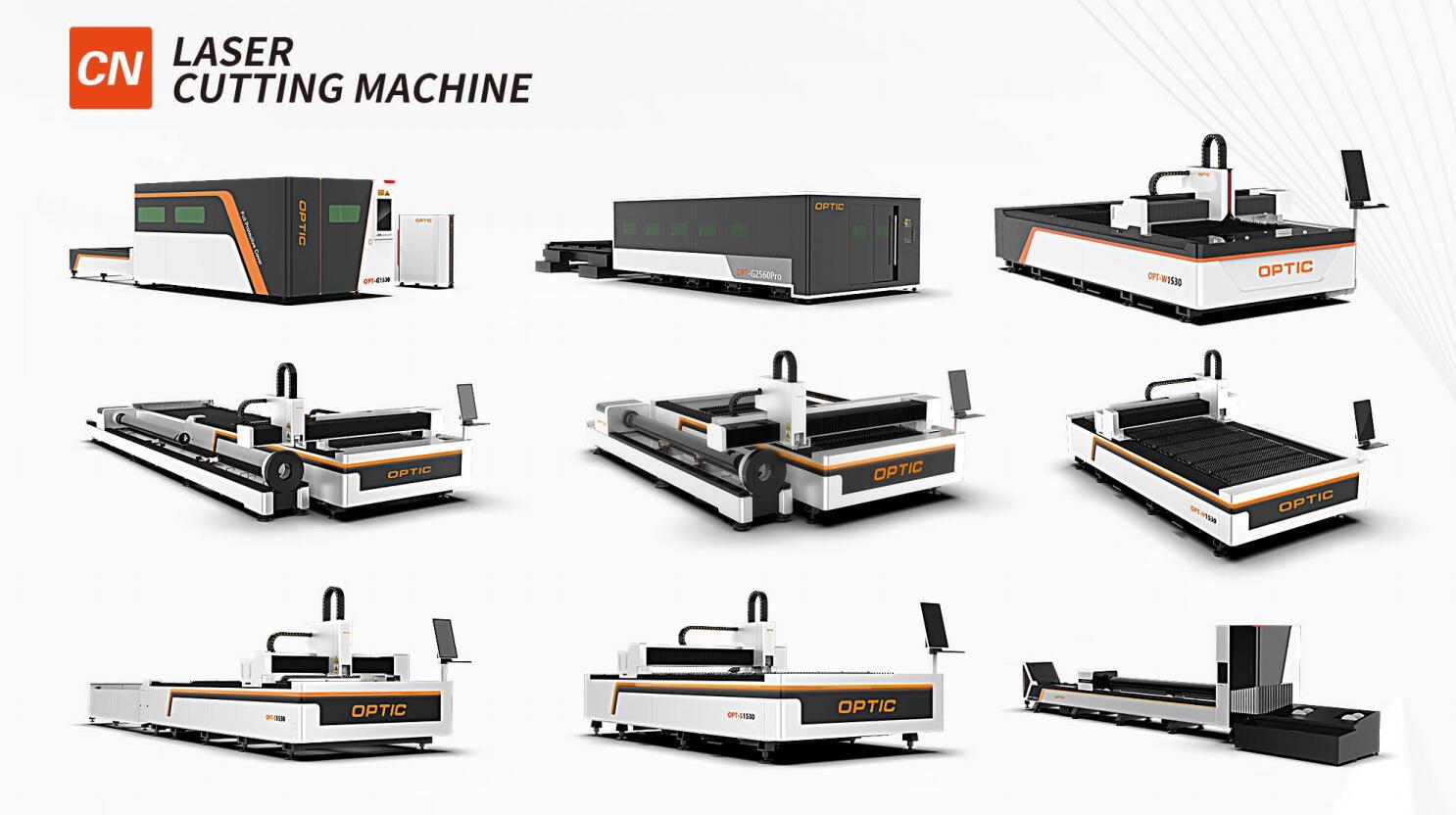

all laser cutting machine

Cutting Ability

Cutting capacity of 1000w laser cutting machine
	1mm	2mm	3mm	4mm	5mm	6mm	8mm	10mm	Material thickness
Laser Power	Mild Steel (O2)								Speed:m/min
1000w	8-10	4-6.5	2.4-3	2-2.4	1.5-2.0	1.4-1.6	0.8-1.2	0.6-1.0
	Stainless SteelN2)
	18-25	5.0-7.5	1.8-2.5	1.2-1.3
	Aluminium(N2)
	6.0-10	2.8-3.6
	Brass (N2)
	6.0-10	2.8-3.6

Consumables cost of 1000W laser cutting machine
Laser power	Consumption		Option 1: Using air compressor to cut S/S	Option 2: Using bottled O2 to cut S/S	Option 3: Using bottled N2 to cut S/S	Option 4: Using liquid N2 to cut S/S
1000w	Power consumption	Laser generator /(kW/h)	3	3	3	3
		Chiller/(kW/h)	3.5	3.5	3.5	3.5
		Host machine/(kW/h)	6	6	6	6
		Dedusting equipment/(kW/h)	3	3	3	3
	Total power/(kW/h)		15.5	15.5	15.5	15.5
	Average power/(kW/h) (e.g.cutting efficiency 60%)		9.3	9.3	9.3	9.3
	Consumable parts/(USD/h)		$0.27	$0.27	$0.27	$0.27
	Gas consumption/(USD/h)		$0.52	$1.06	$10.16	$2.54
	Total operation cost/(USD/h)(RMB1=1kW/h)		$2.29	$2.83	$11.92	$4.30

Cutting capacity of 1500w laser cutting machine
	1mm	2mm	3mm	4mm	5mm	6mm	8mm	10mm	12mm	Material thickness
Laser Power	Mild Steel (O2)									Speed:m/min
1500w	8-26	4.5-6.5	2.6-4.0	2.5-3.0	2.0-2.5	1.6-2.2	1.0-1.4	0.8-1.1	0.7-1.0
	Stainless SteelN2)
	20-27	8.0-12	3-5	1.5-2.4	0.7-1.3
	Aluminium(N2)
	10-20	5.0-7.0	2.0-4.0	1.0-1.5
	Brass (N2)
	8.0-13	3.0-4.5	1.5-2.5	1.0-1.6

Consumables cost of 1500W laser cutting machine
Laser power	Consumption		Option 1: Using air compressor to cut S/S	Option 2: Using bottled O2 to cut S/S	Option 3: Using bottled N2 to cut S/S	Option 4: Using liquid N2 to cut S/S
1500w	Power consumption	Laser generator /(kW/h)	4.5	4.5	4.5	4.5
		Chiller/(kW/h)	3.5	3.5	3.5	3.5
		Host machine/(kW/h)	6	6	6	6
		Dedusting equipment/(kW/h)	3	3	3	3
	Total power/(kW/h)		17	17	17	17
	Average power/(kW/h) (e.g.cutting efficiency 60%)		10.2	10.2	10.2	10.2
	Consumable parts/(USD/h)		$0.29	$0.29	$0.27	$0.27
	Gas consumption/(USD/h)		$0.52	$1.06	$10.16	$2.54
	Total operation cost/(USD/h)(RMB1=1kW/h)		$2.43	$2.97	$12.06	$4.44

Cutting capacity of 2000w laser cutting machine
	1mm	2mm	3mm	4mm	5mm	6mm	8mm	10mm	12mm	14mm	Material thickness
Laser Power	Mild Steel (O2)										Speed:m/min
2000w	24-30	4.7-6.5	3.0-4.8	2.8-3.5	2.2-3.0	1.8-2.6	1.2-1.8	1.1-1.3	0.9-1.2	0.7-0.8
	Stainless SteelN2)
	24-30	9-15	4.0-6.5	3.0-4.5	1.8-2.5	1.2-2.0
	Aluminium(N2)
	15-25	7-10	4-6	2-3	1.2-1.8	0.7-1.0
	Brass (N2)
	10-16	4.5-7.5	2.5-4.0	1.5-2.0	0.9-1.2

Consumables cost of 2000W laser cutting machine
Laser power	Consumption		Option 1: Using air compressor to cut S/S	Option 2: Using bottled O2 to cut S/S	Option 3: Using bottled N2 to cut S/S	Option 4: Using liquid N2 to cut S/S
2000w	Power consumption	Laser generator /(kW/h)	6	6	6	6
		Chiller/(kW/h)	5.7	5.7	5.7	5.7
		Host machine/(kW/h)	6	6	6	6
		Dedusting equipment/(kW/h)	3	3	3	3
	Total power/(kW/h)		20.7	20.7	20.7	20.7
	Average power/(kW/h) (e.g.cutting efficiency 60%)		12.42	12.42	12.42	12.42
	Consumable parts/(USD/h)		$0.29	$0.29	$0.29	$0.29
	Gas consumption/(USD/h)		$0.52	$1.06	$10.16	$2.54
	Total operation cost/(USD/h)(RMB1=1kW/h)		$2.78	$3.32	$12.38	$4.76

Cutting capacity of 3000w laser cutting machine
	1mm	2mm	3mm	4mm	5mm	6mm	8mm	10mm	12mm	14mm	16mm	Material thickness
Laser Power	Mild Steel (O2)											Speed:m/min
3000w	30-40	4.8-7.5	3.3-5.0	3.0-4.2	2.6-3.5	2.2-3.2	1.8-2.6	1.2-2.0	1.0-1.6	0.9-1.4	0.7-1.0
	Stainless SteelN2)
	30-35	13-21	6-10	4-6	3-5	2-4	1.5-2.0	0.6-0.8
	Aluminium(N2)
	25-38	10-18	6.5-8.0	3.5-5.0	2.5-3.5	1.5-2.5	0.7-1.0	0.4-0.7
	Brass (N2)
	20-35	6-10	4-6	3-5	1.5-2.0	1.0-1.8

Cutting capacity of 4000w laser cutting machine
	1mm	2mm	3mm	4mm	5mm	6mm	8mm	10mm	12mm	14mm	16mm	Material thickness
Laser Power	Mild Steel (O2)											Speed:m/min
4000w	33-43	15-25	7-12	3-4	2.7-3.6	2.5-3.4	2.0-3.0	1.5-2.4	1.2-1.8	0.9-1.2	0.8-1.0
	Stainless SteelN2)
	32-45	16-28	7-15	5-8	3.5-5.0	2.5-4.5	1.2-2.0	0.8-1.2	0.5-0.8
	Aluminium(N2)
	35-45	13-24	7-13	4.0-5.5	3.0-4.5	2.0-3.5	0.9-1.6	0.6-1.2	0.4-0.6	0.3-0.5
	Brass (N2)
	25-35	8-12	5-8	3.2-5.5	2.0-3.0	1.4-2.0	0.7-1.2

Consumables cost of 4000W laser cutting machine
Laser power	Consumption		Option 1: Using air compressor to cut S/S	Option 2: Using bottled O2 to cut S/S	Option 3: Using bottled N2 to cut S/S	Option 4: Using liquid N2 to cut S/S
4000w	Power consumption	Laser generator /(kW/h)	12	12	12	12
		Chiller/(kW/h)	6	6	6	6
		Host machine/(kW/h)	10	10	10	10
		Dedusting equipment/(kW/h)	3	3	3	3
	Total power/(kW/h)		31	31	31	31
	Average power/(kW/h) (e.g.cutting efficiency 60%)		18.6	18.6	18.6	18.6
	Consumable parts/(USD/h)		$0.29	$0.29	$0.29	$0.29
	Gas consumption/(USD/h)		$0.52	$1.06	$10.16	$2.54
	Total operation cost/(USD/h)(RMB1=1kW/h)		$3.76	$4.29	$13.40	$5.46

Cutting capacity of 6000w laser cutting machine
	1mm	2mm	3mm	4mm	5mm	6mm	8mm	10mm	12mm	14mm	16mm	20mm	25mm	Material thickness
Laser Power	Mild Steel (O2)													Speed:m/min
6000w	35-44	20-28	13-17	3.0-4.5	3.0-4.2	2.5-3.5	2.2-3.2	1.8-2.5	1.2-2.0	1.2-1.8	0.8-1.3	0.5-0.8	0.3-0.55
	Stainless SteelN2)
	42-52	20-33	15-22	10-15	8-12	4.8-8.0	3.0-4.0	1.6-2.5	0.8-1.5	0.6-0.8	0.4-0.5	0.3-0.5
	Aluminium(N2)
	42-52	20-40	15-25	9.5-12	5-8	3.8-5.0	2.0-2.5	1.0-1.5	0.8-1.0	0.7-0.9	0.5-0.8	0.5-0.7
	Brass (N2)
	35-45	20-30	12-18	5-8	4.5-6.0	3.0-4.5	1.6-2.2	0.8-1.2	0.3-0.5

Cutting capacity of 8000w laser cutting machine
	1mm	2mm	3mm	4mm	5mm	6mm	8mm	10mm	12mm	14mm	16mm	20mm	25mm	Material thickness
Laser Power	Mild Steel (O2)													Speed:m/min
8000w	40-50	28-35	15-19	3.0-4.5	3.0-4.2	2.6-3.7	2.3-2.5	2.0-2.7	1.5-2.1	1.2-1.9	0.8-1.5	0.6-0.9	0.3-0.7
	Stainless SteelN2)
	50-65	30-40	18-27	12-16	10-15	6-10	3.5-5.0	2.0-2.7	1.2-2.0	1.2-1.8	1.0-1.6	0.4-0.7	0.3-0.5
	Aluminium(N2)
	48-65	25-48	20-33	13-18	9-12	4.5-8.0	4.0-5.5	2.2-3.0	1.5-1.8	1.2-1.6	1.0-1.6	0.7-1.0
	Brass (N2)
	40-55	28-40	20-30	10-15	6-9	4.5-6.5	2.4-4.0	1.5-2.2	0.6-0.8

Consumables cost of 8000W laser cutting machine
Laser power	Consumption		Option 1: Using air compressor to cut S/S	Option 2: Using bottled O2 to cut S/S	Option 3: Using bottled N2 to cut S/S	Option 4: Using liquid N2 to cut S/S
8000w	Power consumption	Laser generator /(kW/h)	24	24	24	24
		Chiller/(kW/h)	10	10	10	10
		Host machine/(kW/h)	10	10	10	10
		Dedusting equipment/(kW/h)	3	3	3	3
	Total power/(kW/h)		47	47	47	47
	Average power/(kW/h) (e.g.cutting efficiency 60%)		28.2	28.2	28.2	28.2
	Consumable parts/(USD/h)		$0.29	$0.29	$0.29	$0.29
	Gas consumption/(USD/h)		$0.52	$1.06	$10.16	$2.54
	Total operation cost/(USD/h)(RMB1=1kW/h)		$5.29	$5.83	$14.92	$7.30

Cutting capacity of 10000w laser cutting machine
	1mm	2mm	3mm	4mm	5mm	6mm	8mm	10mm	12mm	14mm	16mm	20mm	25mm	30mm	Material thickness
Laser Power	Mild Steel (O2)														Speed:m/min
10000w	42-52	28-35	16-25	3.5-5.5	3.3-4.5	3.0-4.2	2.5-3.5	2.2-2.7	1.7-1.9	1.2-2.1	0.9-1.7	0.6-0.9	0.3-0.7
	Stainless SteelN2)
	60-75	40-55	27-38	18-25	15-22	12-15	8-12	6-8	3-5	1.8-3.0	1.6-2.5	1.2-1.8	0.6-0.7	0.5-0.6
	Aluminium(N2)
	60-75	33-45	25-35	21-30	13-20	9-12	4.5-8.0	4.0-6.0	2.2-3.0	1.8-2.5	1.5-2.0	1.0-1.6	0.7-1.0
	Brass (N2)
	65-75	33-45	25-40	15-24	9-15	7-9	4.5-6.5	2.4-4.0	1.5-2.2	0.6-0.8

Consumables cost of 10000W laser cutting machine
Laser power	Consumption		Option 1: Using air compressor to cut S/S	Option 2: Using bottled O2 to cut S/S	Option 3: Using bottled N2 to cut S/S	Option 4: Using liquid N2 to cut S/S
10000w	Power consumption	Laser generator /(kW/h)	30	30	30	30
		Chiller/(kW/h)	10	10	10	10
		Host machine/(kW/h)	10	10	10	10
		Dedusting equipment/(kW/h)	3	3	3	3
	Total power/(kW/h)		53	53	53	53
	Average power/(kW/h) (e.g.cutting efficiency 60%)		31.8	31.8	31.8	31.8
	Consumable parts/(USD/h)		$0.29	$0.29	$0.29	$0.29
	Gas consumption/(USD/h)		$0.52	$1.06	$10.16	$2.54
	Total operation cost/(USD/h)(RMB1=1kW/h)		$5.86	$6.35	$15.49	$7.78

Cutting capacity of 12000w laser cutting machine
	1mm	2mm	3mm	4mm	5mm	6mm	8mm	10mm	12mm	14mm	16mm	20mm	25mm	30mm	Material thickness
Laser Power	Mild Steel (O2)														Speed:m/min
12000w	45-55	28-40	18-30	3.5-5.5	3.3-4.5	3.0-4.2	2.5-3.5	2.2-2.7	1.7-1.9	1.2-2.1	0.9-1.7	0.6-0.9	0.3-0.7
	Stainless SteelN2)
	70-85	50-66	33-45	22-32	18-25	15-22	10-16	8-12	6-8	3-5	2-4	1.8-3.0	1.2-1.8	0.6-0.7
	Aluminium(N2)
	70-85	38-50	30-40	25-38	15-25	13-18	9-12	4.5-8.0	4.0-6.0	4.5-5.0	2.0-3.0	1.5-2.0	1.0-1.6	0.7-1.0
	Brass (N2)
	75-85	38-50	30-50	25-33	15-24	9-15	7-9	4.5-6.5	2.5-4.0	0.8-1.5	0.6-0.8

<table width="100%" style="table-layout: fixed;>

Consumables cost of 12000W laser cutting machine
Laser power	Consumption		Option 1: Using air compressor to cut S/S	Option 2: Using bottled O2 to cut S/S	Option 3: Using bottled N2 to cut S/S	Option 4: Using liquid N2 to cut S/S
12000w	Power consumption	Laser generator /(kW/h)	36	36	36	36
		Chiller/(kW/h)	12	12	12	12
		Host machine/(kW/h)	10	10	10	10
		Dedusting equipment/(kW/h)	3	3	3	3
	Total power/(kW/h)		61	61	61	61
	Average power/(kW/h) (e.g.cutting efficiency 60%)		36.6	36.6	36.6	36.6
	Consumable parts/(USD/h)		$0.29	$0.29	$0.29	$0.29
	Gas consumption/(USD/h)		$0.52	$1.06	$10.16	$2.54
	Total operation cost/(USD/h)(RMB1=1kW/h)		$6.62	$7.16	$16.25	$8.63

Cutting capacity of 15000w laser cutting machine
	1mm	2mm	3mm	4mm	5mm	6mm	8mm	10mm	12mm	14mm	16mm	20mm	25mm	30mm	Material thickness
Laser Power	Mild Steel (O2)														Speed:m/min
15000w	48-60	20-42	20-30	3.5-5.5	3.3-4.5	3.0-4.2	2.5-3.5	2.2-2.7	1.7-1.9	1.2-2.1	0.9-1.7	0.6-0.9	0.3-0.7
	Stainless SteelN2)
	72-85	52-70	38-50	25-35	20-30	18-25	12-18	10-15	8-10	3.0-6.0	3.0-4.5	2.0-3.5	1.5-2.0	0.8-1.0
	Aluminium(N2)
	70-85	40-55	35-45	30-40	20-30	15-24	11-15	6-10	5-8	4.5-5.0	2.8-3.5	2.0-2.5	1.2-2.0	0.8-1.0
	Brass (N2)
	75-85	40-55	32-50	27-35	18-26	10-28	8-10	5-7	2.8-4.2	1.0-1.8	0.8-1.5	0.4-0.6

Consumables cost of 15000W laser cutting machine
Laser power	Consumption		Option 1: Using air compressor to cut S/S	Option 2: Using bottled O2 to cut S/S	Option 3: Using bottled N2 to cut S/S	Option 4: Using liquid N2 to cut S/S
15000w	Power consumption	Laser generator /(kW/h)	45	45	45	45
		Chiller/(kW/h)	15	15	15	15
		Host machine/(kW/h)	10	10	10	10
		Dedusting equipment/(kW/h)	3	3	3	3
	Total power/(kW/h)		73	73	73	73
	Average power/(kW/h) (e.g.cutting efficiency 60%)		43.8	43.8	43.8	43.8
	Consumable parts/(USD/h)		$0.29	$0.29	$0.29	$0.29
	Gas consumption/(USD/h)		$0.52	$1.06	$10.16	$2.54
	Total operation cost/(USD/h)(RMB1=1kW/h)		$7.76	$8.30	$17.40	$9.78

Related Products

best laser cutter for small business ET 1530 OPTIC LASER

best laser cutter for small business ET 1530 OPTIC LASER

Exchange Table Fiber Laser Cutting Machine E Series

Exchange Table Fiber Laser Cutting Machine E Series

Plate Fiber Laser Cutting Machine W Series

Plate Fiber Laser Cutting Machine W Series

Plate And Pipes Fiber Laser Cutting Machine HT series

Plate And Pipes Fiber Laser Cutting Machine HT series

Standard Open Type Plate CNC Fiber Laser Cutting Machine H Series

Standard Open Type Plate CNC Fiber Laser Cutting Machine H Series

High Power New Design Fiber Laser Cutting Machine GP Series

High Power New Design Fiber Laser Cutting Machine GP Series

1530G Fiber Laser Cutting Machine China OPTICLASER

1530G Fiber Laser Cutting Machine China OPTICLASER

Tube Laser Cutting Machine T Series

Tube Laser Cutting Machine T Series

Economical fiber laser cutting machine for metal sheet S series

Economical fiber laser cutting machine for metal sheet S series

Subscribe

RECENT POSTS

CONTACT US

  Tel : +86-755-23196457
  Phone : +86 13922887125
  E-mail : manager@optic-tech.cn

Add : 3rd Floor First Building WeiQun Industrial BaiHua Road Guangming New District,ShenZhen City,Guangdong Province,China

7be42ed045d6e5b220a31aae50eef345

XT Ouke Laser (Shenzhen) Technology Co., Ltd.

Add : 101, Building 3, Donglongxing Technology Park, No.46 Huaning Road, Xinshi Community, Dalang Street, Longhua District, Shenzhen, China

QUICK LINKS

PRODUCTS CATEGORY

CONTACT US

Tel : +86-755-23196457

 Phone : +86-19129590661
E-mail : manager@optic-tech.cn

Copyright 2025 Optic Technology (Shenzhen) Co., Ltd.
