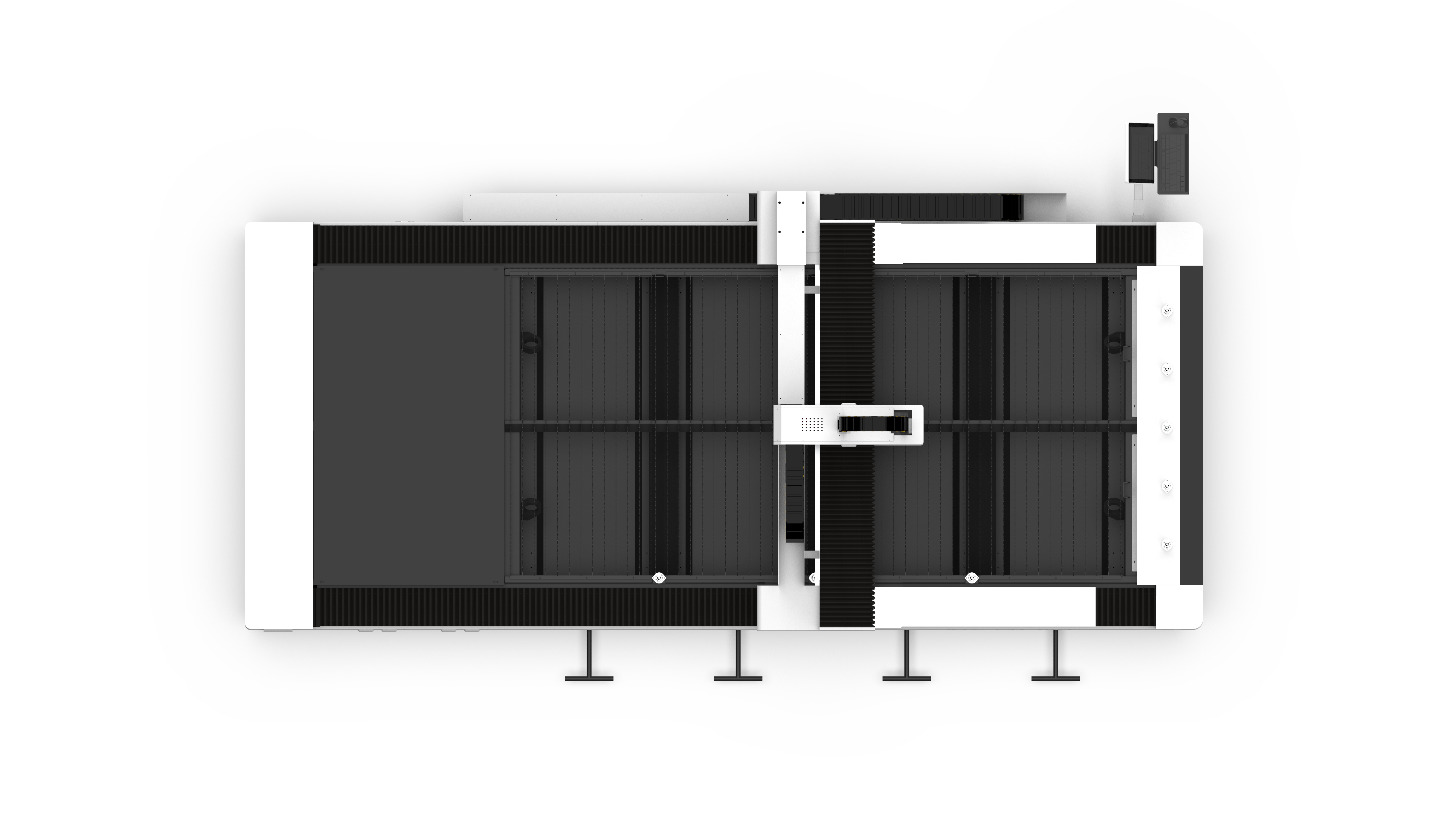

H1530 Fiber Laser Cutting Machine ， is used for cutting metals including steel, aluminum, titanium, alloy, brass, copper, iron with different laser powers
Model: OPT-H1530
Brand: OPTIC
Model OPT-S1530 OPT-S1545 OPT-S1560 OPT-S2040 OPT-S2060 Laser Power ≤2000W Working Area 1500*3000 1500*4500 1500*6000 2000*4000 2000*6000 Idling Speed 140m/min Cutting Speed 60m/min Max.Acceleration 1.5G
1.Cutting ability is greatly improved
2.Improved cutting efficiency
3.Bright surface cutting efficiency is improved
1.The bed is made of high-strength carbon structural steel and the anti-burning design of the graphite plate ensures that the bed is not affected by high temperature.
2.The beam is split, easy to disassemble and transport, artificial aging and solution treatment
3.Rear bed thick plate welding, split assembly structure Convenient transportation and processing, eccentric wheel lift structure, improve cutting stability
4.Original laser imported from Germany, built-in double water cooling, good heat dissipation，THK guide rail with high precision and low noise
Model OPT-S1530 OPT-S1545 OPT-S1560 OPT-S2040 OPT-S2060 Laser Power ≤2000W Working Area 1500*3000 1500*4500 1500*6000 2000*4000 2000*6000 Idling Speed 140m/min Cutting Speed 60m/min Max.Acceleration 1.5G
1.Cutting ability is greatly improved
2.Improved cutting efficiency
3.Bright surface cutting efficiency is improved
1.The bed is made of high-strength carbon structural steel and the anti-burning design of the graphite plate ensures that the bed is not affected by high temperature.
2.The beam is split, easy to disassemble and transport, artificial aging and solution treatment
3.Rear bed thick plate welding, split assembly structure Convenient transportation and processing, eccentric wheel lift structure, improve cutting stability
4.Original laser imported from Germany, built-in double water cooling, good heat dissipation，THK guide rail with high precision and low noise
Cutting capacity of 1000w laser cutting machine 1mm 2mm 3mm 4mm 5mm 6mm 8mm 10mm Material thickness Laser Power Mild Steel (O2) Speed:m/min 1000w 8-10 4-6.5 2.4-3 2-2.4 1.5-2.0 1.4-1.6 0.8-1.2 0.6-1.0 Stainless SteelN2) 18-25 5.0-7.5 1.8-2.5 1.2-1.3 Aluminium(N2) 6.0-10 2.8-3.6 Brass (N2) 6.0-10 2.8-3.6
Consumables cost of 1000W laser cutting machine Laser power Consumption Option 1: Using air compressor to cut S/S Option 2: Using2 to cut S/S Option 3: Using2 to cut S/S Option 4: Using liquid N2 to cut S/S 1000w Power Laser generator /(kW/h) 3 3 3 3 Chiller/(kW/h) 3.5 3.5 3.5 3.5 Host machine/(kW/h) 6 6 6 6 Dedusting equipment/(kW/h) 3 3 3 3 Total power/(kW/h) 15.5 15.5 15.5 15.5 Average power/(kW/h) 9.3 9.3 9.3 9.3 Consumable parts/(USD/h) $0.27 $0.27 $0.27 $0.27 Gas consumption/(USD/h) $0.52 $1.06 $10.16 $2.54 Total operation cost/(USD/h)(RMB1=1kW/h) $2.29 $2.83 $11.92 $4.30
Cutting capacity of 1500w laser cutting machine 1mm 2mm 3mm 4mm 5mm 6mm 8mm 10mm 12mm Material thickness Laser Power Mild Steel (O2) Speed:m/min 1500w 8-26 4.5-6.5 2.6-4.0 2.5-3.0 2.0-2.5 1.6-2.2 1.0-1.4 0.8-1.1 0.7-1.0 Stainless SteelN2) 20-27 8.0-12 3-5 1.5-2.4 0.7-1.3 Aluminium(N2) 10-20 5.0-7.0 2.0-4.0 1.0-1.5 Brass (N2) 8.0-13 3.0-4.5 1.5-2.5 1.0-1.6
Consumables cost of 1500W laser cutting machine Laser power Consumption Option 1: Using air compressor to cut S/S Option 2: Using2 to cut S/S Option 3: Using2 to cut S/S Option 4: Using liquid N2 to cut S/S 1500w Power Laser generator /(kW/h) 4.5 4.5 4.5 4.5 Chiller/(kW/h) 3.5 3.5 3.5 3.5 Host machine/(kW/h) 6 6 6 6 Dedusting equipment/(kW/h) 3 3 3 3 Total power/(kW/h) 17 17 17 17 Average power/(kW/h) 10.2 10.2 10.2 10.2 Consumable parts/(USD/h) $0.29 $0.29 $0.27 $0.27 Gas consumption/(USD/h) $0.52 $1.06 $10.16 $2.54 Total operation cost/(USD/h)(RMB1=1kW/h) $2.43 $2.97 $12.06 $4.44
Cutting capacity of 2000w laser cutting machine 1mm 2mm 3mm 4mm 5mm 6mm 8mm 10mm 12mm 14mm Material thickness Laser Power Mild Steel (O2) Speed:m/min 2000w 24-30 4.7-6.5 3.0-4.8 2.8-3.5 2.2-3.0 1.8-2.6 1.2-1.8 1.1-1.3 0.9-1.2 0.7-0.8 Stainless SteelN2) 24-30 9-15 4.0-6.5 3.0-4.5 1.8-2.5 1.2-2.0 Aluminium(N2) 15-25 7-10 4-6 2-3 1.2-1.8 0.7-1.0 Brass (N2) 10-16 4.5-7.5 2.5-4.0 1.5-2.0 0.9-1.2
Consumables cost of 2000W laser cutting machine Laser power Consumption Option 1: Using air compressor to cut S/S Option 2: Using2 to cut S/S Option 3: Using2 to cut S/S Option 4: Using liquid N2 to cut S/S 2000w Power Laser generator /(kW/h) 6 6 6 6 Chiller/(kW/h) 5.7 5.7 5.7 5.7 Host machine/(kW/h) 6 6 6 6 Dedusting equipment/(kW/h) 3 3 3 3 Total power/(kW/h) 20.7 20.7 20.7 20.7 Average power/(kW/h) 12.42 12.42 12.42 12.42 Consumable parts/(USD/h) $0.29 $0.29 $0.29 $0.29 Gas consumption/(USD/h) $0.52 $1.06 $10.16 $2.54 Total operation cost/(USD/h)(RMB1=1kW/h) $2.78 $3.32 $12.38 $4.76
Cutting capacity of 3000w laser cutting machine 1mm 2mm 3mm 4mm 5mm 6mm 8mm 10mm 12mm 14mm 16mm Material thickness Laser Power Mild Steel (O2) Speed:m/min 3000w 30-40 4.8-7.5 3.3-5.0 3.0-4.2 2.6-3.5 2.2-3.2 1.8-2.6 1.2-2.0 1.0-1.6 0.9-1.4 0.7-1.0 Stainless SteelN2) 30-35 13-21 6-10 4-6 3-5 2-4 1.5-2.0 0.6-0.8 Aluminium(N2) 25-38 10-18 6.5-8.0 3.5-5.0 2.5-3.5 1.5-2.5 0.7-1.0 0.4-0.7 Brass (N2) 20-35 6-10 4-6 3-5 1.5-2.0 1.0-1.8
Cutting capacity of 4000w laser cutting machine 1mm 2mm 3mm 4mm 5mm 6mm 8mm 10mm 12mm 14mm 16mm Material thickness Laser Power Mild Steel (O2) Speed:m/min 4000w 33-43 15-25 7-12 3-4 2.7-3.6 2.5-3.4 2.0-3.0 1.5-2.4 1.2-1.8 0.9-1.2 0.8-1.0 Stainless SteelN2) 32-45 16-28 7-15 5-8 3.5-5.0 2.5-4.5 1.2-2.0 0.8-1.2 0.5-0.8 Aluminium(N2) 35-45 13-24 7-13 4.0-5.5 3.0-4.5 2.0-3.5 0.9-1.6 0.6-1.2 0.4-0.6 0.3-0.5 Brass (N2) 25-35 8-12 5-8 3.2-5.5 2.0-3.0 1.4-2.0 0.7-1.2
Consumables cost of 4000W laser cutting machine Laser power Consumption Option 1: Using air compressor to cut S/S Option 2: Using2 to cut S/S Option 3: Using2 to cut S/S Option 4: Using liquid N2 to cut S/S 4000w Power Laser generator /(kW/h) 12 12 12 12 Chiller/(kW/h) 6 6 6 6 Host machine/(kW/h) 10 10 10 10 Dedusting equipment/(kW/h) 3 3 3 3 Total power/(kW/h) 31 31 31 31 Average power/(kW/h) 18.6 18.6 18.6 18.6 Consumable parts/(USD/h) $0.29 $0.29 $0.29 $0.29 Gas consumption/(USD/h) $0.52 $1.06 $10.16 $2.54 Total operation cost/(USD/h)(RMB1=1kW/h) $3.76 $4.29 $13.40 $5.46
Cutting capacity of 6000w laser cutting machine 1mm 2mm 3mm 4mm 5mm 6mm 8mm 10mm 12mm 14mm 16mm 20mm 25mm Material thickness Laser Power Mild Steel (O2) Speed:m/min 6000w 35-44 20-28 13-17 3.0-4.5 3.0-4.2 2.5-3.5 2.2-3.2 1.8-2.5 1.2-2.0 1.2-1.8 0.8-1.3 0.5-0.8 0.3-0.55 Stainless SteelN2) 42-52 20-33 15-22 10-15 8-12 4.8-8.0 3.0-4.0 1.6-2.5 0.8-1.5 0.6-0.8 0.4-0.5 0.3-0.5 Aluminium(N2) 42-52 20-40 15-25 9.5-12 5-8 3.8-5.0 2.0-2.5 1.0-1.5 0.8-1.0 0.7-0.9 0.5-0.8 0.5-0.7 Brass (N2) 35-45 20-30 12-18 5-8 4.5-6.0 3.0-4.5 1.6-2.2 0.8-1.2 0.3-0.5
Cutting capacity of 8000w laser cutting machine 1mm 2mm 3mm 4mm 5mm 6mm 8mm 10mm 12mm 14mm 16mm 20mm 25mm Material thickness Laser Power Mild Steel (O2) Speed:m/min 8000w 40-50 28-35 15-19 3.0-4.5 3.0-4.2 2.6-3.7 2.3-2.5 2.0-2.7 1.5-2.1 1.2-1.9 0.8-1.5 0.6-0.9 0.3-0.7 Stainless SteelN2) 50-65 30-40 18-27 12-16 10-15 6-10 3.5-5.0 2.0-2.7 1.2-2.0 1.2-1.8 1.0-1.6 0.4-0.7 0.3-0.5 Aluminium(N2) 48-65 25-48 20-33 13-18 9-12 4.5-8.0 4.0-5.5 2.2-3.0 1.5-1.8 1.2-1.6 1.0-1.6 0.7-1.0 Brass (N2) 40-55 28-40 20-30 10-15 6-9 4.5-6.5 2.4-4.0 1.5-2.2 0.6-0.8
Consumables cost of 8000W laser cutting machine Laser power Consumption Option 1: Using air compressor to cut S/S Option 2: Using2 to cut S/S Option 3: Using2 to cut S/S Option 4: Using liquid N2 to cut S/S 8000w Power Laser generator /(kW/h) 24 24 24 24 Chiller/(kW/h) 10 10 10 10 Host machine/(kW/h) 10 10 10 10 Dedusting equipment/(kW/h) 3 3 3 3 Total power/(kW/h) 47 47 47 47 Average power/(kW/h) 28.2 28.2 28.2 28.2 Consumable parts/(USD/h) $0.29 $0.29 $0.29 $0.29 Gas consumption/(USD/h) $0.52 $1.06 $10.16 $2.54 Total operation cost/(USD/h)(RMB1=1kW/h) $5.29 $5.83 $14.92 $7.30
Cutting capacity of 10000w laser cutting machine 1mm 2mm 3mm 4mm 5mm 6mm 8mm 10mm 12mm 14mm 16mm 20mm 25mm 30mm Material thickness Laser Power Mild Steel (O2) Speed:m/min 10000w 42-52 28-35 16-25 3.5-5.5 3.3-4.5 3.0-4.2 2.5-3.5 2.2-2.7 1.7-1.9 1.2-2.1 0.9-1.7 0.6-0.9 0.3-0.7 Stainless SteelN2) 60-75 40-55 27-38 18-25 15-22 12-15 8-12 6-8 3-5 1.8-3.0 1.6-2.5 1.2-1.8 0.6-0.7 0.5-0.6 Aluminium(N2) 60-75 33-45 25-35 21-30 13-20 9-12 4.5-8.0 4.0-6.0 2.2-3.0 1.8-2.5 1.5-2.0 1.0-1.6 0.7-1.0 Brass (N2) 65-75 33-45 25-40 15-24 9-15 7-9 4.5-6.5 2.4-4.0 1.5-2.2 0.6-0.8
Consumables cost of 10000W laser cutting machine Laser power Consumption Option 1: Using air compressor to cut S/S Option 2: Using2 to cut S/S Option 3: Using2 to cut S/S Option 4: Using liquid N2 to cut S/S 10000w Power Laser generator /(kW/h) 30 30 30 30 Chiller/(kW/h) 10 10 10 10 Host machine/(kW/h) 10 10 10 10 Dedusting equipment/(kW/h) 3 3 3 3 Total power/(kW/h) 53 53 53 53 Average power/(kW/h) 31.8 31.8 31.8 31.8 Consumable parts/(USD/h) $0.29 $0.29 $0.29 $0.29 Gas consumption/(USD/h) $0.52 $1.06 $10.16 $2.54 Total operation cost/(USD/h)(RMB1=1kW/h) $5.86 $6.35 $15.49 $7.78
Cutting capacity of 12000w laser cutting machine 1mm 2mm 3mm 4mm 5mm 6mm 8mm 10mm 12mm 14mm 16mm 20mm 25mm 30mm Material thickness Laser Power Mild Steel (O2) Speed:m/min 12000w 45-55 28-40 18-30 3.5-5.5 3.3-4.5 3.0-4.2 2.5-3.5 2.2-2.7 1.7-1.9 1.2-2.1 0.9-1.7 0.6-0.9 0.3-0.7 Stainless SteelN2) 70-85 50-66 33-45 22-32 18-25 15-22 10-16 8-12 6-8 3-5 2-4 1.8-3.0 1.2-1.8 0.6-0.7 Aluminium(N2) 70-85 38-50 30-40 25-38 15-25 13-18 9-12 4.5-8.0 4.0-6.0 4.5-5.0 2.0-3.0 1.5-2.0 1.0-1.6 0.7-1.0 Brass (N2) 75-85 38-50 30-50 25-33 15-24 9-15 7-9 4.5-6.5 2.5-4.0 0.8-1.5 0.6-0.8
<table width="100%" style="table-layout: fixed;>
Consumables cost of 12000W laser cutting machine Laser power Consumption Option 1: Using air compressor to cut S/S Option 2: Using2 to cut S/S Option 3: Using2 to cut S/S Option 4: Using liquid N2 to cut S/S 12000w Power Laser generator /(kW/h) 36 36 36 36 Chiller/(kW/h) 12 12 12 12 Host machine/(kW/h) 10 10 10 10 Dedusting equipment/(kW/h) 3 3 3 3 Total power/(kW/h) 61 61 61 61 Average power/(kW/h) 36.6 36.6 36.6 36.6 Consumable parts/(USD/h) $0.29 $0.29 $0.29 $0.29 Gas consumption/(USD/h) $0.52 $1.06 $10.16 $2.54 Total operation cost/(USD/h)(RMB1=1kW/h) $6.62 $7.16 $16.25 $8.63
Cutting capacity of 15000w laser cutting machine 1mm 2mm 3mm 4mm 5mm 6mm 8mm 10mm 12mm 14mm 16mm 20mm 25mm 30mm Material thickness Laser Power Mild Steel (O2) Speed:m/min 15000w 48-60 20-42 20-30 3.5-5.5 3.3-4.5 3.0-4.2 2.5-3.5 2.2-2.7 1.7-1.9 1.2-2.1 0.9-1.7 0.6-0.9 0.3-0.7 Stainless SteelN2) 72-85 52-70 38-50 25-35 20-30 18-25 12-18 10-15 8-10 3.0-6.0 3.0-4.5 2.0-3.5 1.5-2.0 0.8-1.0 Aluminium(N2) 70-85 40-55 35-45 30-40 20-30 15-24 11-15 6-10 5-8 4.5-5.0 2.8-3.5 2.0-2.5 1.2-2.0 0.8-1.0 Brass (N2) 75-85 40-55 32-50 27-35 18-26 10-28 8-10 5-7 2.8-4.2 1.0-1.8 0.8-1.5 0.4-0.6
Consumables cost of 15000W laser cutting machine Laser power Consumption Option 1: Using air compressor to cut S/S Option 2: Using2 to cut S/S Option 3: Using2 to cut S/S Option 4: Using liquid N2 to cut S/S 15000w Power Laser generator /(kW/h) 45 45 45 45 Chiller/(kW/h) 15 15 15 15 Host machine/(kW/h) 10 10 10 10 Dedusting equipment/(kW/h) 3 3 3 3 Total power/(kW/h) 73 73 73 73 Average power/(kW/h) 43.8 43.8 43.8 43.8 Consumable parts/(USD/h) $0.29 $0.29 $0.29 $0.29 Gas consumption/(USD/h) $0.52 $1.06 $10.16 $2.54 Total operation cost/(USD/h)(RMB1=1kW/h) $7.76 $8.30 $17.40 $9.78
Cutting capacity of 1000w laser cutting machine 1mm 2mm 3mm 4mm 5mm 6mm 8mm 10mm Material thickness Laser Power Mild Steel (O2) Speed:m/min 1000w 8-10 4-6.5 2.4-3 2-2.4 1.5-2.0 1.4-1.6 0.8-1.2 0.6-1.0 Stainless SteelN2) 18-25 5.0-7.5 1.8-2.5 1.2-1.3 Aluminium(N2) 6.0-10 2.8-3.6 Brass (N2) 6.0-10 2.8-3.6
Consumables cost of 1000W laser cutting machine Laser power Consumption Option 1: Using air compressor to cut S/S Option 2: Using2 to cut S/S Option 3: Using2 to cut S/S Option 4: Using liquid N2 to cut S/S 1000w Power Laser generator /(kW/h) 3 3 3 3 Chiller/(kW/h) 3.5 3.5 3.5 3.5 Host machine/(kW/h) 6 6 6 6 Dedusting equipment/(kW/h) 3 3 3 3 Total power/(kW/h) 15.5 15.5 15.5 15.5 Average power/(kW/h) 9.3 9.3 9.3 9.3 Consumable parts/(USD/h) $0.27 $0.27 $0.27 $0.27 Gas consumption/(USD/h) $0.52 $1.06 $10.16 $2.54 Total operation cost/(USD/h)(RMB1=1kW/h) $2.29 $2.83 $11.92 $4.30
Cutting capacity of 1500w laser cutting machine 1mm 2mm 3mm 4mm 5mm 6mm 8mm 10mm 12mm Material thickness Laser Power Mild Steel (O2) Speed:m/min 1500w 8-26 4.5-6.5 2.6-4.0 2.5-3.0 2.0-2.5 1.6-2.2 1.0-1.4 0.8-1.1 0.7-1.0 Stainless SteelN2) 20-27 8.0-12 3-5 1.5-2.4 0.7-1.3 Aluminium(N2) 10-20 5.0-7.0 2.0-4.0 1.0-1.5 Brass (N2) 8.0-13 3.0-4.5 1.5-2.5 1.0-1.6
Consumables cost of 1500W laser cutting machine Laser power Consumption Option 1: Using air compressor to cut S/S Option 2: Using2 to cut S/S Option 3: Using2 to cut S/S Option 4: Using liquid N2 to cut S/S 1500w Power Laser generator /(kW/h) 4.5 4.5 4.5 4.5 Chiller/(kW/h) 3.5 3.5 3.5 3.5 Host machine/(kW/h) 6 6 6 6 Dedusting equipment/(kW/h) 3 3 3 3 Total power/(kW/h) 17 17 17 17 Average power/(kW/h) 10.2 10.2 10.2 10.2 Consumable parts/(USD/h) $0.29 $0.29 $0.27 $0.27 Gas consumption/(USD/h) $0.52 $1.06 $10.16 $2.54 Total operation cost/(USD/h)(RMB1=1kW/h) $2.43 $2.97 $12.06 $4.44
Cutting capacity of 2000w laser cutting machine 1mm 2mm 3mm 4mm 5mm 6mm 8mm 10mm 12mm 14mm Material thickness Laser Power Mild Steel (O2) Speed:m/min 2000w 24-30 4.7-6.5 3.0-4.8 2.8-3.5 2.2-3.0 1.8-2.6 1.2-1.8 1.1-1.3 0.9-1.2 0.7-0.8 Stainless SteelN2) 24-30 9-15 4.0-6.5 3.0-4.5 1.8-2.5 1.2-2.0 Aluminium(N2) 15-25 7-10 4-6 2-3 1.2-1.8 0.7-1.0 Brass (N2) 10-16 4.5-7.5 2.5-4.0 1.5-2.0 0.9-1.2
Consumables cost of 2000W laser cutting machine Laser power Consumption Option 1: Using air compressor to cut S/S Option 2: Using2 to cut S/S Option 3: Using2 to cut S/S Option 4: Using liquid N2 to cut S/S 2000w Power Laser generator /(kW/h) 6 6 6 6 Chiller/(kW/h) 5.7 5.7 5.7 5.7 Host machine/(kW/h) 6 6 6 6 Dedusting equipment/(kW/h) 3 3 3 3 Total power/(kW/h) 20.7 20.7 20.7 20.7 Average power/(kW/h) 12.42 12.42 12.42 12.42 Consumable parts/(USD/h) $0.29 $0.29 $0.29 $0.29 Gas consumption/(USD/h) $0.52 $1.06 $10.16 $2.54 Total operation cost/(USD/h)(RMB1=1kW/h) $2.78 $3.32 $12.38 $4.76
Cutting capacity of 3000w laser cutting machine 1mm 2mm 3mm 4mm 5mm 6mm 8mm 10mm 12mm 14mm 16mm Material thickness Laser Power Mild Steel (O2) Speed:m/min 3000w 30-40 4.8-7.5 3.3-5.0 3.0-4.2 2.6-3.5 2.2-3.2 1.8-2.6 1.2-2.0 1.0-1.6 0.9-1.4 0.7-1.0 Stainless SteelN2) 30-35 13-21 6-10 4-6 3-5 2-4 1.5-2.0 0.6-0.8 Aluminium(N2) 25-38 10-18 6.5-8.0 3.5-5.0 2.5-3.5 1.5-2.5 0.7-1.0 0.4-0.7 Brass (N2) 20-35 6-10 4-6 3-5 1.5-2.0 1.0-1.8
Cutting capacity of 4000w laser cutting machine 1mm 2mm 3mm 4mm 5mm 6mm 8mm 10mm 12mm 14mm 16mm Material thickness Laser Power Mild Steel (O2) Speed:m/min 4000w 33-43 15-25 7-12 3-4 2.7-3.6 2.5-3.4 2.0-3.0 1.5-2.4 1.2-1.8 0.9-1.2 0.8-1.0 Stainless SteelN2) 32-45 16-28 7-15 5-8 3.5-5.0 2.5-4.5 1.2-2.0 0.8-1.2 0.5-0.8 Aluminium(N2) 35-45 13-24 7-13 4.0-5.5 3.0-4.5 2.0-3.5 0.9-1.6 0.6-1.2 0.4-0.6 0.3-0.5 Brass (N2) 25-35 8-12 5-8 3.2-5.5 2.0-3.0 1.4-2.0 0.7-1.2
Consumables cost of 4000W laser cutting machine Laser power Consumption Option 1: Using air compressor to cut S/S Option 2: Using2 to cut S/S Option 3: Using2 to cut S/S Option 4: Using liquid N2 to cut S/S 4000w Power Laser generator /(kW/h) 12 12 12 12 Chiller/(kW/h) 6 6 6 6 Host machine/(kW/h) 10 10 10 10 Dedusting equipment/(kW/h) 3 3 3 3 Total power/(kW/h) 31 31 31 31 Average power/(kW/h) 18.6 18.6 18.6 18.6 Consumable parts/(USD/h) $0.29 $0.29 $0.29 $0.29 Gas consumption/(USD/h) $0.52 $1.06 $10.16 $2.54 Total operation cost/(USD/h)(RMB1=1kW/h) $3.76 $4.29 $13.40 $5.46
Cutting capacity of 6000w laser cutting machine 1mm 2mm 3mm 4mm 5mm 6mm 8mm 10mm 12mm 14mm 16mm 20mm 25mm Material thickness Laser Power Mild Steel (O2) Speed:m/min 6000w 35-44 20-28 13-17 3.0-4.5 3.0-4.2 2.5-3.5 2.2-3.2 1.8-2.5 1.2-2.0 1.2-1.8 0.8-1.3 0.5-0.8 0.3-0.55 Stainless SteelN2) 42-52 20-33 15-22 10-15 8-12 4.8-8.0 3.0-4.0 1.6-2.5 0.8-1.5 0.6-0.8 0.4-0.5 0.3-0.5 Aluminium(N2) 42-52 20-40 15-25 9.5-12 5-8 3.8-5.0 2.0-2.5 1.0-1.5 0.8-1.0 0.7-0.9 0.5-0.8 0.5-0.7 Brass (N2) 35-45 20-30 12-18 5-8 4.5-6.0 3.0-4.5 1.6-2.2 0.8-1.2 0.3-0.5
Cutting capacity of 8000w laser cutting machine 1mm 2mm 3mm 4mm 5mm 6mm 8mm 10mm 12mm 14mm 16mm 20mm 25mm Material thickness Laser Power Mild Steel (O2) Speed:m/min 8000w 40-50 28-35 15-19 3.0-4.5 3.0-4.2 2.6-3.7 2.3-2.5 2.0-2.7 1.5-2.1 1.2-1.9 0.8-1.5 0.6-0.9 0.3-0.7 Stainless SteelN2) 50-65 30-40 18-27 12-16 10-15 6-10 3.5-5.0 2.0-2.7 1.2-2.0 1.2-1.8 1.0-1.6 0.4-0.7 0.3-0.5 Aluminium(N2) 48-65 25-48 20-33 13-18 9-12 4.5-8.0 4.0-5.5 2.2-3.0 1.5-1.8 1.2-1.6 1.0-1.6 0.7-1.0 Brass (N2) 40-55 28-40 20-30 10-15 6-9 4.5-6.5 2.4-4.0 1.5-2.2 0.6-0.8
Consumables cost of 8000W laser cutting machine Laser power Consumption Option 1: Using air compressor to cut S/S Option 2: Using2 to cut S/S Option 3: Using2 to cut S/S Option 4: Using liquid N2 to cut S/S 8000w Power Laser generator /(kW/h) 24 24 24 24 Chiller/(kW/h) 10 10 10 10 Host machine/(kW/h) 10 10 10 10 Dedusting equipment/(kW/h) 3 3 3 3 Total power/(kW/h) 47 47 47 47 Average power/(kW/h) 28.2 28.2 28.2 28.2 Consumable parts/(USD/h) $0.29 $0.29 $0.29 $0.29 Gas consumption/(USD/h) $0.52 $1.06 $10.16 $2.54 Total operation cost/(USD/h)(RMB1=1kW/h) $5.29 $5.83 $14.92 $7.30
Cutting capacity of 10000w laser cutting machine 1mm 2mm 3mm 4mm 5mm 6mm 8mm 10mm 12mm 14mm 16mm 20mm 25mm 30mm Material thickness Laser Power Mild Steel (O2) Speed:m/min 10000w 42-52 28-35 16-25 3.5-5.5 3.3-4.5 3.0-4.2 2.5-3.5 2.2-2.7 1.7-1.9 1.2-2.1 0.9-1.7 0.6-0.9 0.3-0.7 Stainless SteelN2) 60-75 40-55 27-38 18-25 15-22 12-15 8-12 6-8 3-5 1.8-3.0 1.6-2.5 1.2-1.8 0.6-0.7 0.5-0.6 Aluminium(N2) 60-75 33-45 25-35 21-30 13-20 9-12 4.5-8.0 4.0-6.0 2.2-3.0 1.8-2.5 1.5-2.0 1.0-1.6 0.7-1.0 Brass (N2) 65-75 33-45 25-40 15-24 9-15 7-9 4.5-6.5 2.4-4.0 1.5-2.2 0.6-0.8
Consumables cost of 10000W laser cutting machine Laser power Consumption Option 1: Using air compressor to cut S/S Option 2: Using2 to cut S/S Option 3: Using2 to cut S/S Option 4: Using liquid N2 to cut S/S 10000w Power Laser generator /(kW/h) 30 30 30 30 Chiller/(kW/h) 10 10 10 10 Host machine/(kW/h) 10 10 10 10 Dedusting equipment/(kW/h) 3 3 3 3 Total power/(kW/h) 53 53 53 53 Average power/(kW/h) 31.8 31.8 31.8 31.8 Consumable parts/(USD/h) $0.29 $0.29 $0.29 $0.29 Gas consumption/(USD/h) $0.52 $1.06 $10.16 $2.54 Total operation cost/(USD/h)(RMB1=1kW/h) $5.86 $6.35 $15.49 $7.78
Cutting capacity of 12000w laser cutting machine 1mm 2mm 3mm 4mm 5mm 6mm 8mm 10mm 12mm 14mm 16mm 20mm 25mm 30mm Material thickness Laser Power Mild Steel (O2) Speed:m/min 12000w 45-55 28-40 18-30 3.5-5.5 3.3-4.5 3.0-4.2 2.5-3.5 2.2-2.7 1.7-1.9 1.2-2.1 0.9-1.7 0.6-0.9 0.3-0.7 Stainless SteelN2) 70-85 50-66 33-45 22-32 18-25 15-22 10-16 8-12 6-8 3-5 2-4 1.8-3.0 1.2-1.8 0.6-0.7 Aluminium(N2) 70-85 38-50 30-40 25-38 15-25 13-18 9-12 4.5-8.0 4.0-6.0 4.5-5.0 2.0-3.0 1.5-2.0 1.0-1.6 0.7-1.0 Brass (N2) 75-85 38-50 30-50 25-33 15-24 9-15 7-9 4.5-6.5 2.5-4.0 0.8-1.5 0.6-0.8
<table width="100%" style="table-layout: fixed;>
Consumables cost of 12000W laser cutting machine Laser power Consumption Option 1: Using air compressor to cut S/S Option 2: Using2 to cut S/S Option 3: Using2 to cut S/S Option 4: Using liquid N2 to cut S/S 12000w Power Laser generator /(kW/h) 36 36 36 36 Chiller/(kW/h) 12 12 12 12 Host machine/(kW/h) 10 10 10 10 Dedusting equipment/(kW/h) 3 3 3 3 Total power/(kW/h) 61 61 61 61 Average power/(kW/h) 36.6 36.6 36.6 36.6 Consumable parts/(USD/h) $0.29 $0.29 $0.29 $0.29 Gas consumption/(USD/h) $0.52 $1.06 $10.16 $2.54 Total operation cost/(USD/h)(RMB1=1kW/h) $6.62 $7.16 $16.25 $8.63
Cutting capacity of 15000w laser cutting machine 1mm 2mm 3mm 4mm 5mm 6mm 8mm 10mm 12mm 14mm 16mm 20mm 25mm 30mm Material thickness Laser Power Mild Steel (O2) Speed:m/min 15000w 48-60 20-42 20-30 3.5-5.5 3.3-4.5 3.0-4.2 2.5-3.5 2.2-2.7 1.7-1.9 1.2-2.1 0.9-1.7 0.6-0.9 0.3-0.7 Stainless SteelN2) 72-85 52-70 38-50 25-35 20-30 18-25 12-18 10-15 8-10 3.0-6.0 3.0-4.5 2.0-3.5 1.5-2.0 0.8-1.0 Aluminium(N2) 70-85 40-55 35-45 30-40 20-30 15-24 11-15 6-10 5-8 4.5-5.0 2.8-3.5 2.0-2.5 1.2-2.0 0.8-1.0 Brass (N2) 75-85 40-55 32-50 27-35 18-26 10-28 8-10 5-7 2.8-4.2 1.0-1.8 0.8-1.5 0.4-0.6
Consumables cost of 15000W laser cutting machine Laser power Consumption Option 1: Using air compressor to cut S/S Option 2: Using2 to cut S/S Option 3: Using2 to cut S/S Option 4: Using liquid N2 to cut S/S 15000w Power Laser generator /(kW/h) 45 45 45 45 Chiller/(kW/h) 15 15 15 15 Host machine/(kW/h) 10 10 10 10 Dedusting equipment/(kW/h) 3 3 3 3 Total power/(kW/h) 73 73 73 73 Average power/(kW/h) 43.8 43.8 43.8 43.8 Consumable parts/(USD/h) $0.29 $0.29 $0.29 $0.29 Gas consumption/(USD/h) $0.52 $1.06 $10.16 $2.54 Total operation cost/(USD/h)(RMB1=1kW/h) $7.76 $8.30 $17.40 $9.78
