Learn more about our compact jewelry laser welding machine

Views:41     Author:Kelly Xu     Publish Time: 2019-08-23      Origin:www.opticlaser.net Inquire

Learn more about our compact jewelry laser welding machine.


Do you know jewelry laser welding machine?This article will guide you to learn more about our compact jewelry laser welding machine.


We have many clients who do jewelry business.  And all of them need to buy  jewelry laser welding machine. Because they need to weld the jewelry after cutting gold, silver metal.

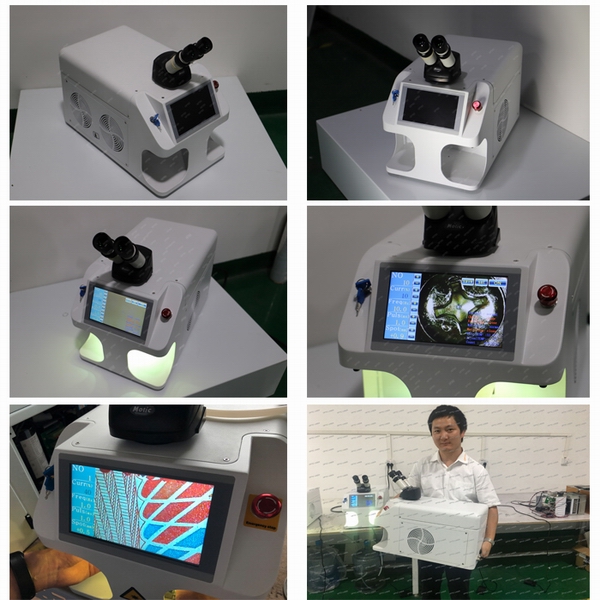

Our compact jewelry laser welding machine can save more space and shipping cost. So here is the machine photo and its welding samples.

001245

未标题-1

Applications:

Widely used in gold and silver jewelry, rings, pendants, bracelets, necklaces, holes, spot welding brazing, repair seams and the welding brazing, repair seams and the welding of claw parts of the mosaic parts, etc., can also be applied to artificial teeth sand and small precision parts ( Such as: In-heritance Circuit lead, clock spring, kinescope, electron gun assembly, etc.


Features:

1. We use Germany Heraeus xenon lamp, lamp lifetime is around 2 years
2. All accessories of the mini laser welder using highly integrated technology,
3. About the crystal, we use Dongjun (the best brand in China).
4. Machine power is 100w, but power energy is large, can reach 100J.
5. We adopt double layer protective lens, dust and welding reside are not easy to leave on protective lens and lead to lens damage.
6. The capacity of water tank is 1.5L, fast heat dissipation, can run the machine for a long time.
7. Machine equipped with high quality 10X microscope and HD CCD camera.

8. Machine dimension is 51*28*29cm, net weight:29Kg.


Machine parameters:

Laser power100W
Laser typeYAG
Wavelength1064nm
Maximum single pulse energy100J
Pulse width0.1-10ms
Frequency0-20Hz
Welding depth0.1-1mm
Spot size adjustment range0.1-3mm
Power consumption1Kw
Rated powerAC220±5%  50HZ;  AC110±5%  60HZ


Machine warranty:

Firstly, the machine with 1 year warranty, if the parts damaged during the warranty period, we will ship a new one to you by express and freight cost is on us.

Secondly, we will provide free training on how to operate the machine and do the maintenance after the order confirmed.

90% of our customer learn to use this laser welding machine within 5 hours. A few part of customer who never in the machinery business can learn how to use this machine in one day.

Thirdly, before you receive the machine, we provide the operation manual, working video to guide you how to operate the machine step by step.

If the machine have any small problems, our engineer will help you to solve it through whatsapp, skype or wechat.

If any problems cant solved by above communication tools, our engineer will go to your site to solve it.( usually this situation will not happen)



Machine operation links on youtube:

https://www.youtube.com/watch?v=NwJ3TVq_I5Q&t=3s

https://www.youtube.com/watch?v=7EFZa8dkHAM




If further details needed, please contact with me for more details.
