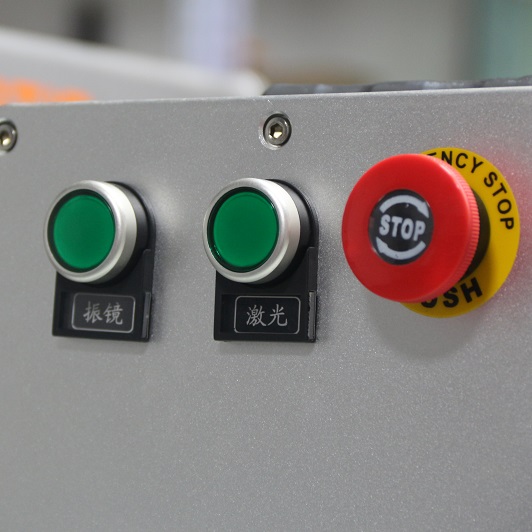

Mini Type Fiber Laser Marking Machine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
Are you looking for a sturdy engraving machine with the ability to work with several kinds of materials? Why don’t you try the 20W ~ 50W CNC Laser Engraving Cutting Machine? In addition to materials such as wood, cardboard, leather, and plastic, this machine is also able to engrave ceramics, mylar, marble, and crystal. So, if you want a machine to print beautiful patterns and words on your coffee mugs, this is it.
  • XT-F20W/30W/50W

  • XTOUKE

  • Metal/non-metal

Graphic Format:
Key Selling Points:
Laser Power:
Working Accuracy:
Availability:

Are you looking for a sturdy engraving machine with the ability to work with several kinds of materials? Why don’t you try the 20W ~ 50W CNC Laser Engraving Cutting Machine? In addition to materials such as wood, cardboard, leather, and plastic, this machine is also able to engrave ceramics, mylar, marble, and crystal. So, if you want a machine to print beautiful patterns and words on your coffee mugs, this is it.

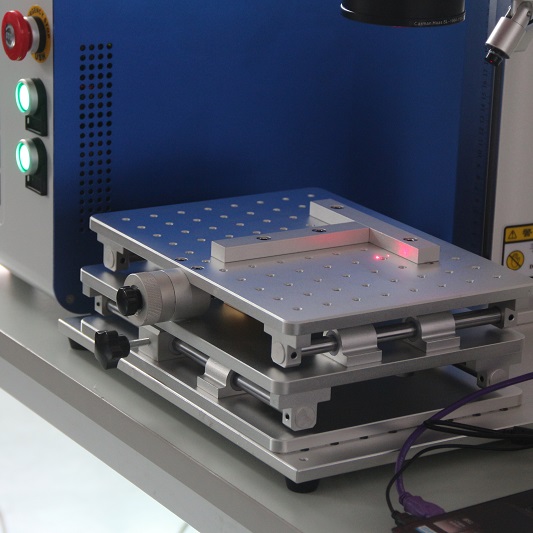

Economy Portable Laser Marking Machine (4)


1.Fast marking Speed and High Efficiency

2.High Electro-optic Conversion Efficiency

3.Perfect marking effect

4.Integrated structure,small and compact size,less occupied area,easy transportation


What can the laser marking machine do?

Fiber Laser

The fiber laser is the most recent development in laser marking technology. Fiber laser marking machine uses a low maintenance solid-state laser source. Because of its effective cooling system, it is proving very popular among the existing laser marking systems. There are no consumable materials required and you don’t have to worry about maintenance, either. Ultimately, fiber laser marking tools are very reliable, safe, and good for the environment. These fiber laser marking machines are ideal for marking on various metals such as stainless steel, aluminum, and some plastics, etc.


The following are some examples of fiber laser marking/engraving machines for metal markings.


Characteristics

1.Multiple power laser light source, available for many industries;

2.Fast speed, high efficiency, stable output power, high reliability;

3.Long life, maintenance-free within 100,000 hours, operated in 24 hours and severe working condition;

4.High electro-optic conversion efficiency, little energy coupling loss, less power consumption with just 0.5 KW/Hour;

5.Small and compact size, easy to carry, save production space.


Application Area

3C industry, auto industry, medical equipments , electronic components, IT industry, hardware industry, precision apparatuses, crafts, high-low-voltage appliances, etc


Laser marking machine engraves LOGO on mobile phone case



Laser marking machine, used in plastic products



laser marking machine engraving ring



If you are in the clothing industry, the laser marking machine can also help you customize the logo on your jeans



Of course, you can also use the laser marking machine to do light cutting work



In addition, we also have a co2 laser marking machine for wood



The laser technology source generates a signal that is amplified in the fiber optic cable. The signal then passes through the collimator which aligns the beam and reduces its diameter to 7mm before entering the galvanometric head. This galvo head is equipped with two rotating mirrors that further focus and direct the laser beam for fast and rigidly precise marking. Finally, a lens concentrates the signal's power into a 30 µm beam. According to our customers' need it is possible to add at any time options, such as 3D marking or integrated reading systems. We can adapt all our laser marking machines to the various specifications.


UV fiber laser marking machine The sample


This technology consists of a high frequency beam generated from a laser source. This beam is then amplified and directed towards a part to be marked via a series of rotating mirrors. The reaction that takes place inside the material marked consists of 3 distinct processes:


Engraving: a groove is created in the first layers of the material

Annealing: the color of the target material is altered to enhance the contrast

Foaming: the coating aspect is altered.




Customer Reviews 1Customer Reviews 2Customer Reviews 5Customer Reviews 3Customer Reviews 4

Factory

Factory

Exhibition

Exhibition

Global Service12,Global ServiceCertificate

Certificate
