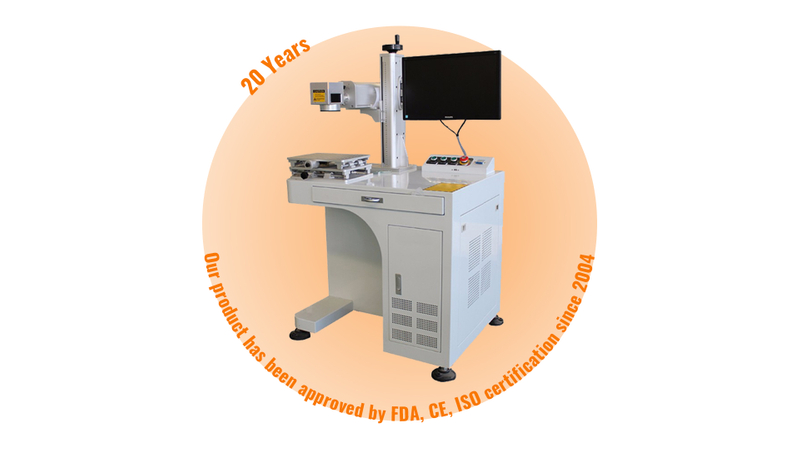

This fiber laser marking machine is professional for both metal and non-metal material marking. Such as stainless steel, carbon steel, aluminum,copper, chrome, anodized aluminum, silicon wafer, etc. As well as lots of non metal materials, like ceramic, rubber, plastic, leather, cardboard, watch, ear ring, finger ring and key chain marking.
This fiber laser marking machine is professional for both metal and non-metal material marking. Such as stainless steel, carbon steel, aluminum,copper, chrome, anodized aluminum, silicon wafer, etc. As well as lots of non metal materials, like ceramic, rubber, plastic, leather, cardboard, watch, ear ring, finger ring and key chain marking.
Laser type
Fiber laser
Laser Power
20W/30W/50W/100W
Marking area
100*100mm/200*200mm/300*300
Marking line width
0.01-0.1mm
Marking depth
0.01-2mm(depending on material)
Working voltage
220v/50Hz
Cooling way
Air cooling
Warranty
2Years (includes parts & laser power
Advantages
Fast marking Speed and High Efficiency
High Electro-optic Conversion Efficiency
Perfect marking effect
Integrated structure,small and compact size,less occupied area,easy transportation
Laser Marking Machine Characteristics
Multiple power laser light source, available for many industries;
Fast speed, high efficiency, stable output power, high reliability;
Long life, maintenance-free within 100,000 hours, operated in 24 hours and severe working condition;
High electro-optic conversion efficiency, little energy coupling loss, less power consumption with just 0.5 KW/Hour;
Small and compact size, easy to carry, save production space.
What can the laser marking machine do?
Fiber Laser
The fiber laser is the most recent development in laser marking technology. Fiber laser marking machine uses a low maintenance solid-state laser source. Because of its effective cooling system, it is proving very popular among the existing laser marking systems. There are no consumable materials required and you don’t have to worry about maintenance, either. Ultimately, fiber laser marking tools are very reliable, safe, and good for the environment. These fiber laser marking machines are ideal for marking on various metals such as stainless steel, aluminum, and some plastics, etc.

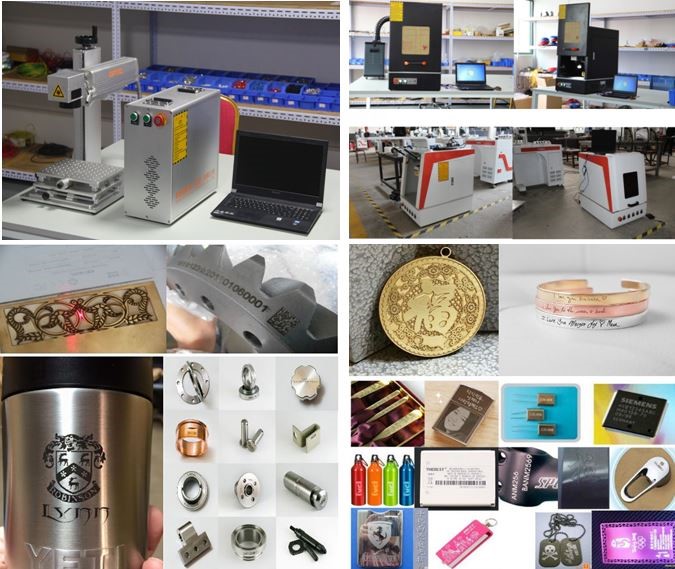

The following are some examples of fiber laser marking/engraving machines for metal markings.

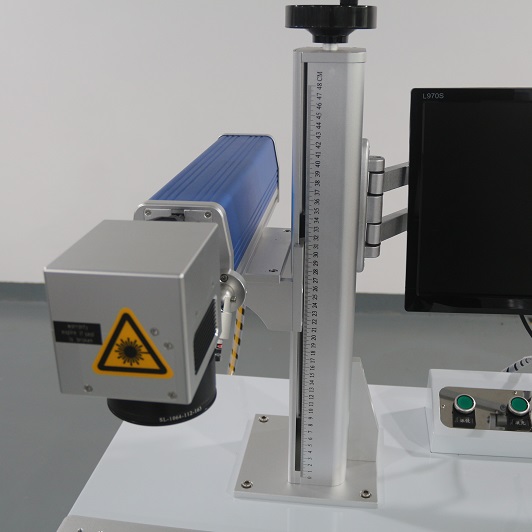

The laser technology source generates a signal that is amplified in the fiber optic cable. The signal then passes through the collimator which aligns the beam and reduces its diameter to 7mm before entering the galvanometric head. This galvo head is equipped with two rotating mirrors that further focus and direct the laser beam for fast and rigidly precise marking. Finally, a lens concentrates the signal's power into a 30 µm beam. According to our customers' need it is possible to add at any time options, such as 3D marking or integrated reading systems. We can adapt all our laser marking machines to the various specifications.
This technology consists of a high frequency beam generated from a laser source. This beam is then amplified and directed towards a part to be marked via a series of rotating mirrors. The reaction that takes place inside the material marked consists of 3 distinct processes:
Engraving: a groove is created in the first layers of the material
Annealing: the color of the target material is altered to enhance the contrast
Foaming: the coating aspect is altered.
Both our employees and the company YouTube have a series of laser marking (d engraving, cutting, welding) machine demonstration videos. Every time we break through, we will make a video for you to watch
Application Area
3C industry, auto industry, medical equipments , electronic components, IT industry, hardware industry, precision apparatuses, crafts, high-low-voltage appliances, etc
Laser marking machine engraves LOGO on mobile phone case
Laser marking machine, used in plastic products
laser marking machine engraving ring
If you are in the clothing industry, the laser marking machine can also help you customize the logo on your jeans
Of course, you can also use the laser marking machine to do light cutting work
In addition, we also have a co2 laser marking machine for wood
This fiber laser marking machine is professional for both metal and non-metal material marking. Such as stainless steel, carbon steel, aluminum,copper, chrome, anodized aluminum, silicon wafer, etc. As well as lots of non metal materials, like ceramic, rubber, plastic, leather, cardboard, watch, ear ring, finger ring and key chain marking.
Laser type
Fiber laser
Laser Power
20W/30W/50W/100W
Marking area
100*100mm/200*200mm/300*300
Marking line width
0.01-0.1mm
Marking depth
0.01-2mm(depending on material)
Working voltage
220v/50Hz
Cooling way
Air cooling
Warranty
2Years (includes parts & laser power
Advantages
Fast marking Speed and High Efficiency
High Electro-optic Conversion Efficiency
Perfect marking effect
Integrated structure,small and compact size,less occupied area,easy transportation
Laser Marking Machine Characteristics
Multiple power laser light source, available for many industries;
Fast speed, high efficiency, stable output power, high reliability;
Long life, maintenance-free within 100,000 hours, operated in 24 hours and severe working condition;
High electro-optic conversion efficiency, little energy coupling loss, less power consumption with just 0.5 KW/Hour;
Small and compact size, easy to carry, save production space.
What can the laser marking machine do?
Fiber Laser
The fiber laser is the most recent development in laser marking technology. Fiber laser marking machine uses a low maintenance solid-state laser source. Because of its effective cooling system, it is proving very popular among the existing laser marking systems. There are no consumable materials required and you don’t have to worry about maintenance, either. Ultimately, fiber laser marking tools are very reliable, safe, and good for the environment. These fiber laser marking machines are ideal for marking on various metals such as stainless steel, aluminum, and some plastics, etc.
The following are some examples of fiber laser marking/engraving machines for metal markings.
The laser technology source generates a signal that is amplified in the fiber optic cable. The signal then passes through the collimator which aligns the beam and reduces its diameter to 7mm before entering the galvanometric head. This galvo head is equipped with two rotating mirrors that further focus and direct the laser beam for fast and rigidly precise marking. Finally, a lens concentrates the signal's power into a 30 µm beam. According to our customers' need it is possible to add at any time options, such as 3D marking or integrated reading systems. We can adapt all our laser marking machines to the various specifications.
This technology consists of a high frequency beam generated from a laser source. This beam is then amplified and directed towards a part to be marked via a series of rotating mirrors. The reaction that takes place inside the material marked consists of 3 distinct processes:
Engraving: a groove is created in the first layers of the material
Annealing: the color of the target material is altered to enhance the contrast
Foaming: the coating aspect is altered.
Both our employees and the company YouTube have a series of laser marking (d engraving, cutting, welding) machine demonstration videos. Every time we break through, we will make a video for you to watch
Application Area
3C industry, auto industry, medical equipments , electronic components, IT industry, hardware industry, precision apparatuses, crafts, high-low-voltage appliances, etc
Laser marking machine engraves LOGO on mobile phone case
Laser marking machine, used in plastic products
laser marking machine engraving ring
If you are in the clothing industry, the laser marking machine can also help you customize the logo on your jeans
Of course, you can also use the laser marking machine to do light cutting work
In addition, we also have a co2 laser marking machine for wood
