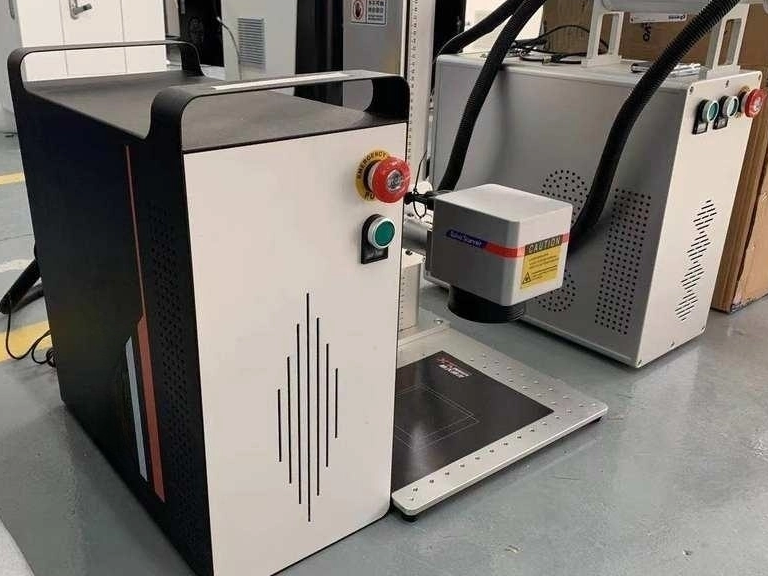

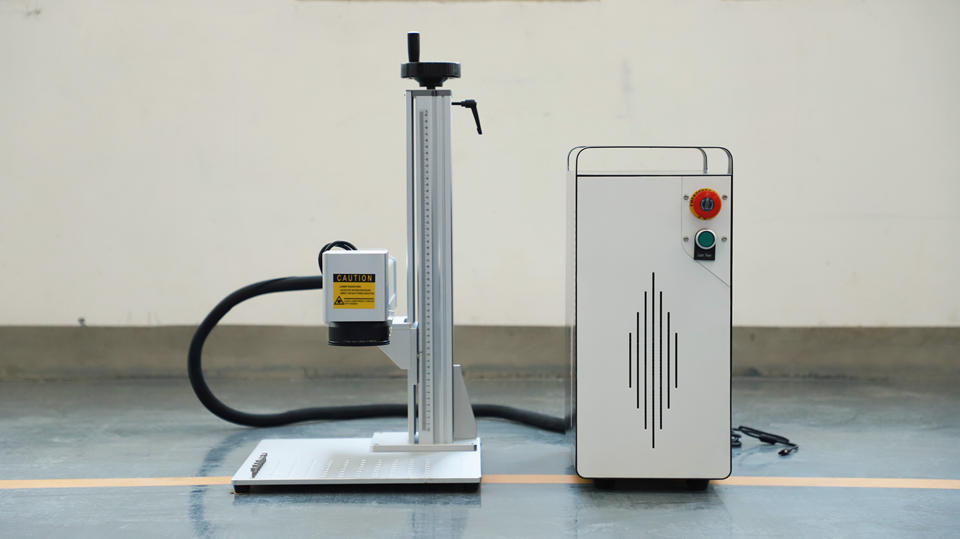

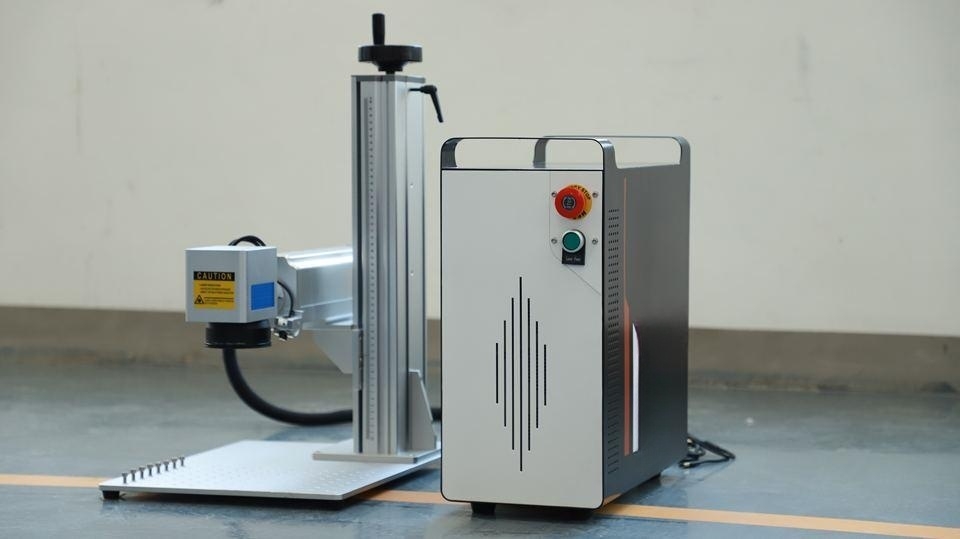

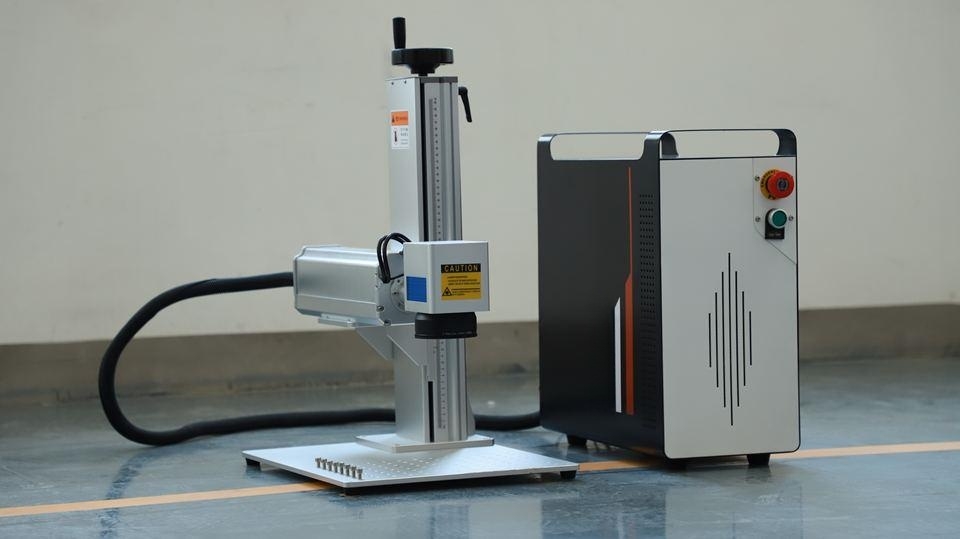

Curve Surface 3D Fiber Laser Marking Machine

Share to:
Fiber Laser Marking Machine, 3D Fiber Laser Marking Machine suppliers/factory, wholesale high-quality products of Metal 3D Fiber Laser Marker R & D and manufacturing, we have the perfect after-sales service and technical support. Look forward to your cooperation!
  • OPT-F20 / OPT-F30
  • OPTIC
  • Metal/non-metal
Power:
Availability:

 Fiber Laser Marking Machine3D Fiber Laser Marking Machine suppliers/factory, wholesale high-quality products of Metal 3D Fiber Laser Marker R & D and manufacturing, we have the perfect after-sales service and technical support. Look forward to your cooperation!



1. Applications primarily suited for curved surface marking & engraving, such as stepped appearance, wave shape, cambered surface. It could be used on al metal material, including steel, aluminum, copper, titanium, silver, gold etc.

2. Fiber laser power source options from 20W to 30W

3. Fiber offers reduced maintenance requirements and operating costs compared to CO2

Position acccuracy <+/-0.01mm

4. Working voltage: AC220V/110V+/-10% 50Hz/60Hz

5. 2 year Warranty covers laser machine parts. Ask about our optional warranty extensions




Marking Area
100*100mm~300*300mm
Laser Power
20w/30w Fiber
Marking speed
≤7000mm/s
Material Capability
metals
Repeat positioning axxuracy
±0.01mm/m
Laser / PC Connectivity
USB connection
Power Supply
AC 220V / 50Hz(60Hz)
Warranty
2 Years (includes parts & laser power)


The laser technology source generates a signal that is amplified in the fiber optic cable. The signal then passes through the collimator which aligns the beam and reduces its diameter to 7mm before entering the galvanometric head. This galvo head is equipped with two rotating mirrors that further focus and direct the laser beam for fast and rigidly precise marking. Finally, a lens concentrates the signal's power into a 30 µm beam. According to our customers' need it is possible to add at any time options, such as 3D marking or integrated reading systems. We can adapt all our laser marking machines to the various specifications.


marking and engraving samples from xintian technology162


This technology consists of a high frequency beam generated from a laser source. This beam is then amplified and directed towards a part to be marked via a series of rotating mirrors. The reaction that takes place inside the material marked consists of 3 distinct processes:


Engraving: a groove is created in the first layers of the material

Annealing: the color of the target material is altered to enhance the contrast

Foaming: the coating aspect is altered.

Laser marking machine engraves LOGO on mobile phone case



Laser marking machine, used in plastic products



laser marking machine engraving ring



If you are in the clothing industry, the laser marking machine can also help you customize the logo on your jeans



Of course, you can also use the laser marking machine to do light cutting work



In addition, we also have a co2 laser marking machine for wood
